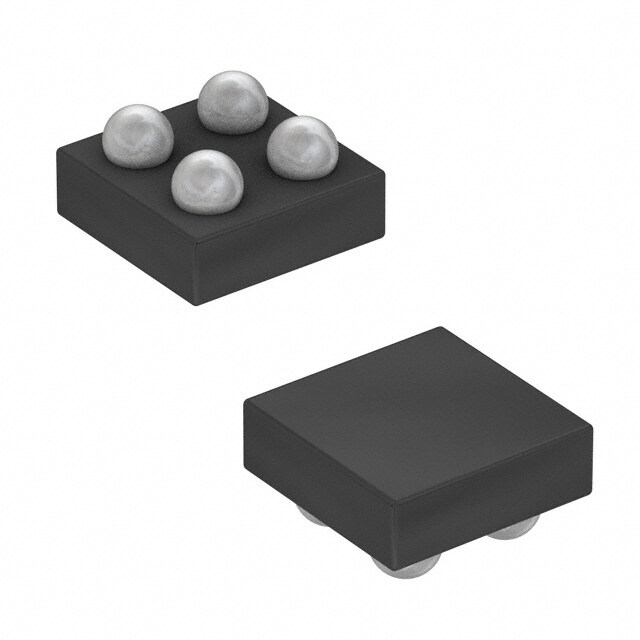

MAX6400BS27+T
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant Tape & Reel (TR) Simple Reset/Power-On Reset EAR99 supervisor 3V 0.67mm 100ms 303mW
PDF
/
Inventory: 8977
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.67mm
Technical
Overvoltage Threshold 2.741V
Undervoltage Threshold 2.66V
Max Reset Threshold Voltage 2.741V
Min Reset Threshold Voltage 2.66V
Reset Timeout 100 ms
Number of Voltages Monitored 1
Voltage - Threshold 2.7V
Reset Active Low
Watchdog Timer No
Adjustable Threshold NO
Operating Supply Current 1μA
Power Dissipation-Max 303mW
Min Supply Voltage 1V
Max Supply Voltage 5.5V
Number of Channels 1
Temperature Grade INDUSTRIAL
Pin Count 4
Terminal Pitch 0.5mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology BICMOS
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Simple Reset/Power-On Reset
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
Published 2001
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Mount Surface Mount
