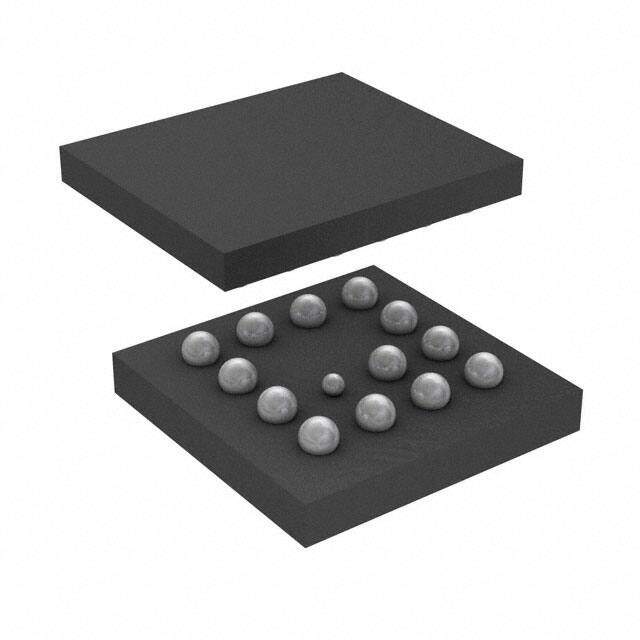

BD6046GUL-E2
RoHS
RoHS compliant
RoHS compliantPackage 13-UFBGA, CSPBGA
Category Integrated Circuits (ICs) / PMIC - Power Management - Specialized
Description
BD6046 Tape & Reel (TR) Surface Mount SOURCE pmic power management device 2.5mm 6.7V -40C~85C 35muA
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.10675
≥1 USD $1.10675
≥10 USD $0.9082
≥100 USD $0.8797
≥500 USD $0.8512
≥1000 USD $0.8227
Inventory: 1405
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 13-UFBGA, CSPBGA
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2008
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 13
ECCN Code EAR99
Applications USB Overvoltage Protection Controller
Voltage - Supply 2.2V~28V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number BD6046
Pin Count 13
Qualification Status Not Qualified
Operating Supply Current 35μA
Threshold Voltage 28V
Undervoltage Threshold 3.6V
Overvoltage Threshold 6.7V
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
Turn On Time 5000 μs
Output Peak Current Limit-Nom 1.2A
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Output Current Flow Direction SOURCE
Number of Monitored Inputs 1
Dimensions
Height Seated (Max) 0.55mm
Length 2.5mm
Width 2.5mm
Compliance
RoHS Status ROHS3 Compliant
