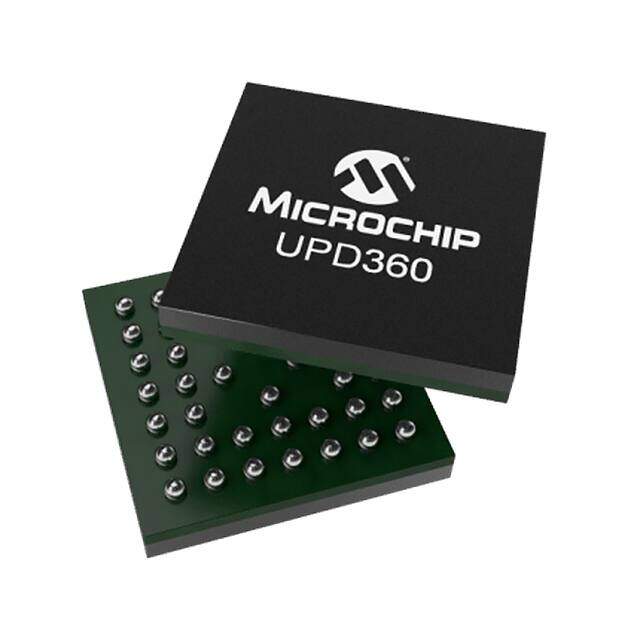

UPD360-C/6HX
RoHS
RoHS compliant
RoHS compliantPackage 44-WFBGA
Category Integrated Circuits (ICs) / PMIC - Power Management - Specialized
Description
Tray Surface Mount USB Type-C Controller CMOS pmic power management device 4mm 3.3V 70C
PDF
/
Buying Options
Total Price: USD $2.26
Unit Price: USD $2.2616
≥1 USD $2.2616
Inventory: 517
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Surface Mount
Package / Case 44-WFBGA
Surface Mount YES
Technical
Packaging Tray
Published 2016
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 44
Applications USB, Type-C Controller
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3.3V
Terminal Pitch 0.5mm
JESD-30 Code S-PBGA-B44
Operating Temperature (Max) 70°C
Supply Voltage-Max (Vsup) 3.47V
Temperature Grade COMMERCIAL
Supply Voltage-Min (Vsup) 3.1V
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, UNIVERSAL SERIAL BUS
Bus Compatibility SPI
Dimensions
Height Seated (Max) 0.8mm
Length 4mm
Width 4mm
Compliance
RoHS Status ROHS3 Compliant
