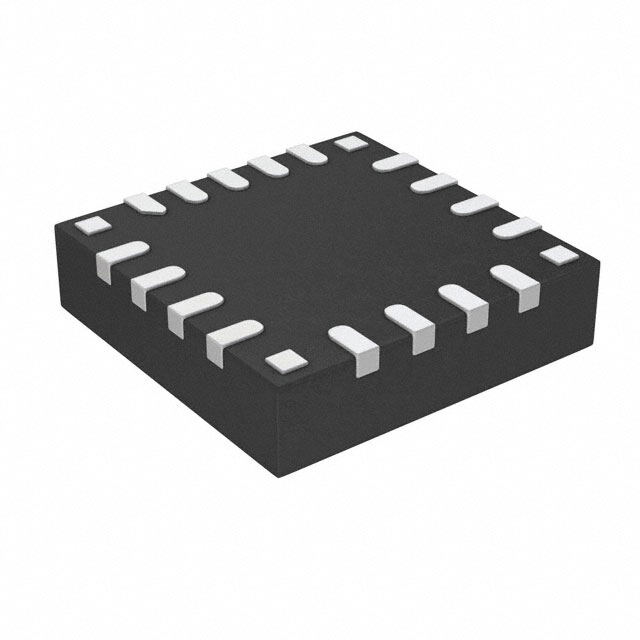

TPS22993PRLWR
RoHS
RoHS compliant
RoHS compliantPackage 20-WFQFN
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
ROHS3Compliant Obsolete Contains Lead SPST General Purpose Power Switch/Driver -40C~85C TA 15m Ohm 1.2A 1V~3.6V
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.105903
≥1 USD $1.105903
≥10 USD $1.043305
≥100 USD $0.984248
≥500 USD $0.928541
≥1000 USD $0.87598
Inventory: 1116
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Rds On (Typ) 15m Ω
Voltage - Load 1V~3.6V
Ratio - Input:Output 1:1
Switch Type General Purpose
Quiescent Current 18μA
Output Configuration High Side
Analog IC - Other Type SPST
Interface I2C
Max Output Current 1.2A
Output Type N-Channel
Number of Outputs 4
Base Part Number TPS22993
Peak Reflow Temperature (Cel) 260
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Load Discharge, Slew Rate Controlled
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 20
Package / Case 20-WFQFN
Mounting Type Surface Mount
Mount Surface Mount
