TPS22990NDMLT
RoHS
RoHS compliant

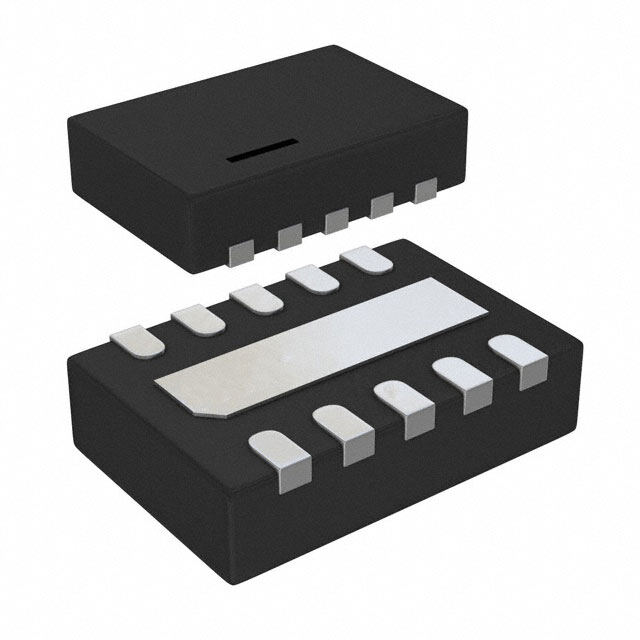

RoHS compliantPackage 10-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
NO LEAD ROHS3Compliant Non-Inverting Active General Purpose Power Switch/Driver -40C~105C TA 3.9m Ohm 10A 2.5V
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $1.07536
≥100 USD $1.020448
≥500 USD $0.838112
Inventory: 677
Minimum: 1
-
+
Technical Details
Technical
Nominal Input Voltage 5.5V
Ratio - Input:Output 1:1
Voltage - Load 2.5V~5.5V
Rds On (Typ) 3.9m Ω
Supply Voltage1-Nom 1.05V
Switch Type General Purpose
Input Type Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required
Output Configuration High Side
Current - Output (Max) 10A
Interface On/Off
Supply Voltage-Min (Vsup) 2.5V
Output Type N-Channel
Number of Outputs 1
Base Part Number TPS22990
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Number of Terminations 10
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Feature Power Good, Slew Rate Controlled
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C TA
Supply Voltage1-Min 0.6V
Output Current Flow Direction SOURCE SINK
Built-in Protections TRANSIENT
Physical
Number of Pins 10
Surface Mount YES
Package / Case 10-WFDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 12 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 750μm
Width 2mm
Length 3mm
Height 800μm
