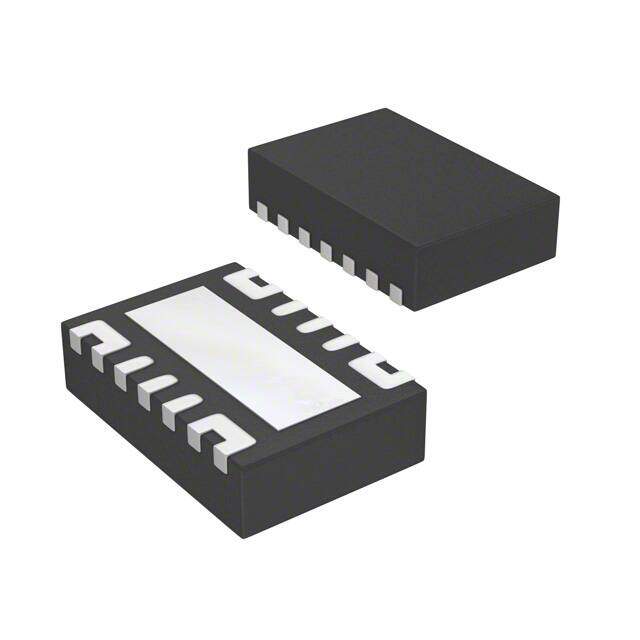

TPS22966DPUR
RoHS
RoHS compliant
RoHS compliantPackage 14-PowerWFDFN
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Cut Tape (CT) TPS22966 e4 On/Off power distribution switch 3mm 0.8V 2.05ms 6A
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.78672
≥100 USD $0.746592
≥500 USD $0.613272
≥1000 USD $0.573267
≥3000 USD $0.506616
Inventory: 5369
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-PowerWFDFN
Number of Pins 14
Technical
Operating Temperature -40°C~125°C TJ
Packaging Cut Tape (CT)
JESD-609 Code e4
Feature Load Discharge
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 14
ECCN Code EAR99
Resistance 27mOhm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 1.2V
Terminal Pitch 0.4mm
Base Part Number TPS22966
Number of Outputs 2
Output Type N-Channel
Supply Voltage-Min (Vsup) 0.8V
Number of Channels 2
Interface On/Off
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Output Configuration High Side or Low Side
Output Current 6A
Voltage - Supply (Vcc/Vdd) 0.8V~5.5V
Adjustable Threshold NO
Quiescent Current 80μA
Input Type Non-Inverting
Turn On Delay Time 2.05 ms
Switch Type General Purpose
Nominal Input Voltage 5.5V
Turn-Off Delay Time 5 μs
Ratio - Input:Output 1:1
Voltage - Load 2.5V~5.5V
Rds On (Typ) 18m Ω
Dimensions
Height 800μm
Length 3mm
Width 2mm
Thickness 750μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
