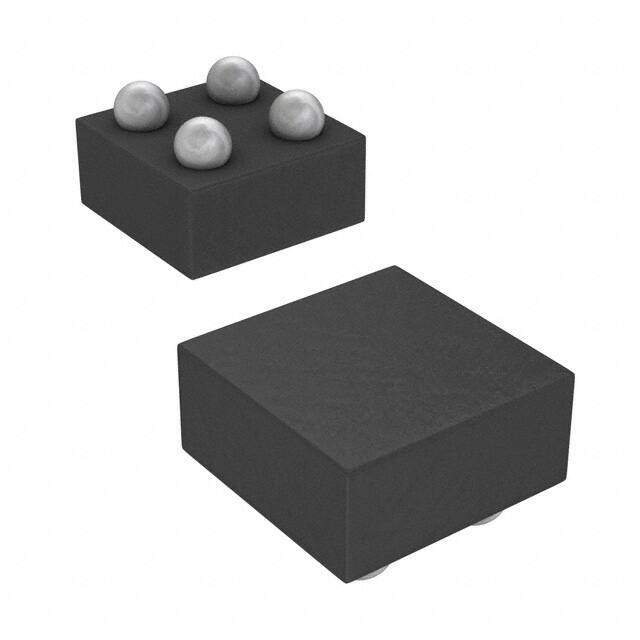

TPS22908YZTR
RoHS
RoHS compliant
RoHS compliantPackage 4-UFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Digi-Reel? TPS22908 e1 On/Off power distribution switch 1.25mm 1V 7000ns 1A
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.4224
≥1 USD $0.4224
≥10 USD $0.37136
≥100 USD $0.34848
≥500 USD $0.284504
≥1000 USD $0.264282
≥3000 USD $0.224928
Inventory: 33074
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 480μm
Width 1.25mm
Length 1.25mm
Height 625μm
Technical
Switch-off Time-Max 7000 ns
Rds On (Typ) 28.2m Ω
Switching BREAK-BEFORE-MAKE
Voltage - Load 1V~3.6V
Ratio - Input:Output 1:1
Nominal Input Voltage 3.6V
Switch Type General Purpose
Input Type Non-Inverting
Quiescent Current 190nA
Voltage - Supply (Vcc/Vdd) Not Required
Output Current 1A
Output Configuration High Side
Analog IC - Other Type SPST
Interface On/Off
Number of Channels 1
Supply Voltage-Min (Vsup) 1V
Output Type P-Channel
Number of Outputs 1
Base Part Number TPS22908
Terminal Pitch 0.5mm
Supply Voltage 1.2V
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Resistance 32.1Ohm
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Load Discharge, Slew Rate Controlled
JESD-609 Code e1
Packaging Digi-Reel?
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 4
Package / Case 4-UFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
