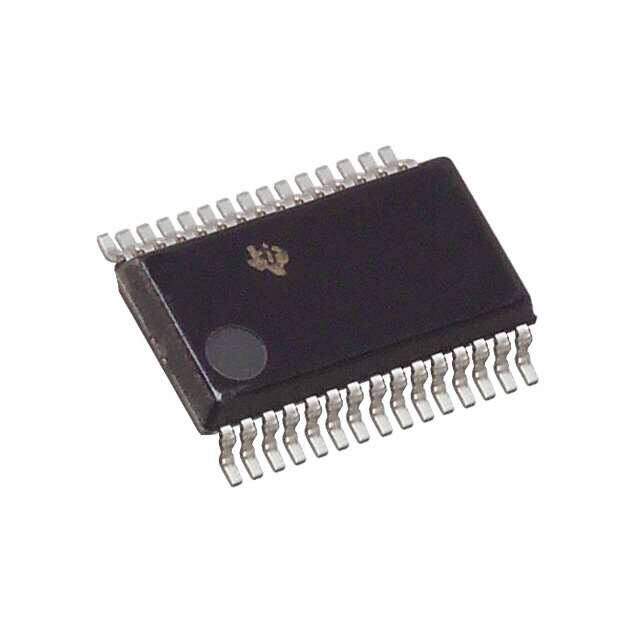

TPS2206IDBR
RoHS
RoHS compliant
RoHS compliantPackage 30-SSOP (0.209, 5.30mm Width)
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) TPS2206 Current Limiting (Fixed) Over Temperature e4 power distribution switch 10.2mm 13.5V 1A 103m Ohm
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.4041
≥1 USD $1.4041
≥10 USD $1.15235
≥100 USD $1.11625
≥500 USD $1.08015
≥1000 USD $1.04405
Inventory: 32410
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 30-SSOP (0.209, 5.30mm Width)
Number of Pins 30
Weight 217.61094mg
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Feature Status Flag
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 30
ECCN Code EAR99
Resistance 110mOhm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Power Management Circuits
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.65mm
Base Part Number TPS2206
Pin Count 30
Number of Outputs 4
Max Output Current 1A
Number of Channels 2
Interface Serial
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Number of Ports 2
Output Configuration High Side
Voltage - Supply (Vcc/Vdd) Not Required
Adjustable Threshold NO
Switch Type PCMCIA Switch
Nominal Input Voltage 13.5V
Ratio - Input:Output 3:4
Voltage - Load 3.3V 5V 12V
Fault Protection Current Limiting (Fixed), Over Temperature
Rds On (Typ) 103m Ω
Dimensions
Height 2mm
Length 10.2mm
Width 5.3mm
Thickness 1.95mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
