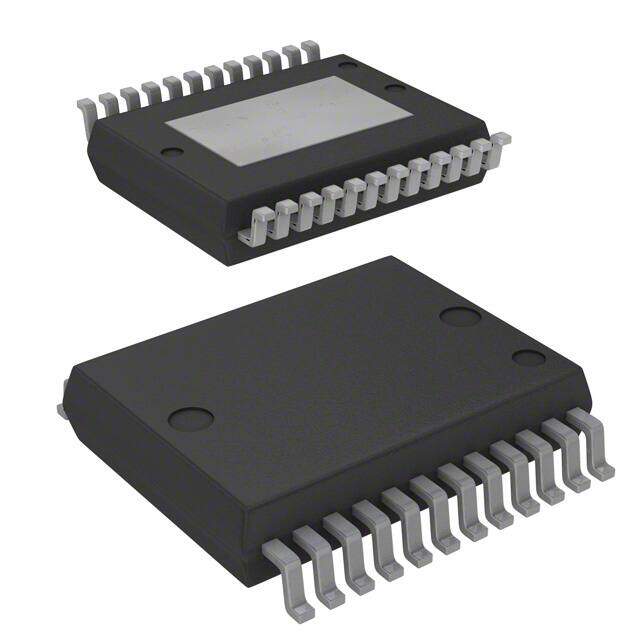

VNQ810PEPTR-E
RoHS
RoHS compliant
RoHS compliantPackage 24-PowerBSOP (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) VNQ810 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage SOURCE power distribution switch 10.3mm 13V 30mus 5A
PDF
/
Buying Options
Total Price: USD $2.81
Unit Price: USD $2.810919
≥1 USD $2.810919
≥200 USD $1.088394
≥500 USD $1.05032
≥1000 USD $1.030627
Inventory: 1435
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 24-PowerBSOP (0.295, 7.50mm Width)
Number of Pins 24
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series VIPower?
JESD-609 Code e3
Feature Auto Restart, Status Flag
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
ECCN Code EAR99
Resistance 160mOhm
Terminal Finish Matte Tin (Sn)
Subcategory Peripheral Drivers
Max Power Dissipation 66W
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 4
Supply Voltage 13V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number VNQ810
Pin Count 24
Number of Outputs 4
Output Type N-Channel
Max Output Current 5A
Operating Supply Voltage 13V
Supply Voltage-Max (Vsup) 36V
Power Supplies 8/36V
Interface On/Off
Nominal Supply Current 13.5mA
Output Configuration High Side
Power Dissipation 66W
Voltage - Supply (Vcc/Vdd) Not Required
Max Supply Current 13.5mA
Input Type Non-Inverting
Turn On Delay Time 30 μs
Switch Type General Purpose
Output Current per Channel 3.5A
Turn-Off Delay Time 30 μs
Ratio - Input:Output 1:1
Voltage - Load 5.5V~36V
Driver Number of Bits 4
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Output Peak Current Limit-Nom 7.5A
Rds On (Typ) 160m Ω (Max)
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Output Current Flow Direction SOURCE
Dimensions
Length 10.3mm
Width 7.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
