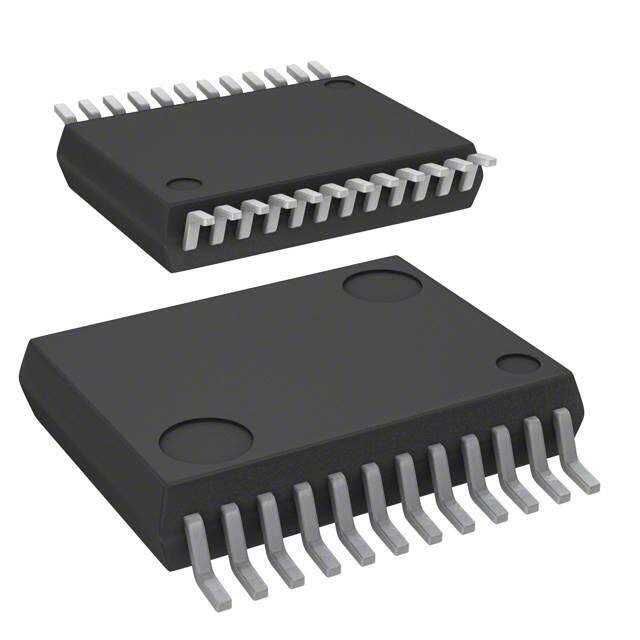

VNI4140KTR-32
RoHS
RoHS compliant
RoHS compliantPackage 24-BSOP (0.295, 7.50mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) VNI4140 Current Limiting (Fixed) Over Temperature e3 power distribution switch 0.8mm 24V 10mA 80m Ohm (Max)
PDF
/
Buying Options
Total Price: USD $3.54
Unit Price: USD $3.544237
≥1 USD $3.544237
Inventory: 732007
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Rds On (Typ) 80m Ω (Max)
Input Current 10mA
Fault Protection Current Limiting (Fixed), Over Temperature
Driver Number of Bits 4
Voltage - Load 10.5V~36V
Ratio - Input:Output 1:1
Switch Type General Purpose
Input Type Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required
Output Current 1A
Output Configuration High Side
Nominal Supply Current 2.4mA
Interface On/Off
Max Output Current 1A
Output Type N-Channel
Number of Outputs 4
Base Part Number VNI4140
Terminal Pitch 0.8mm
Supply Voltage 24V
Terminal Position DUAL
Subcategory Peripheral Drivers
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Termination Gull Wing
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Status Flag
JESD-609 Code e3
Series VIPower?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 24
Package / Case 24-BSOP (0.295, 7.50mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Factory Lead Time 14 Weeks
