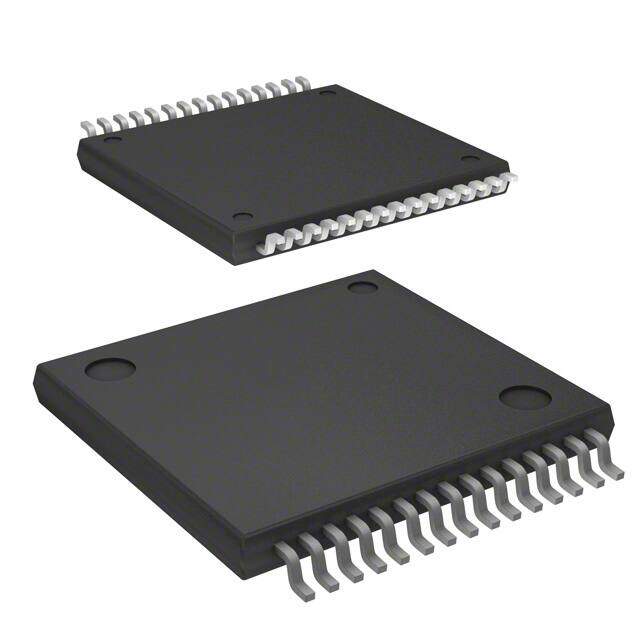

VND5E004A30TR-E
RoHS
RoHS compliant
RoHS compliantPackage 30-PowerSOP (0.630, 16.00mm Width)
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) VND5E004 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage SINK power distribution switch 1mm 13V 25mus 65A
PDF
/
Buying Options
Total Price: USD $22.82
Unit Price: USD $22.8209
≥1 USD $22.8209
≥10 USD $18.72545
≥100 USD $18.14025
≥500 USD $17.55505
≥1000 USD $16.96985
≥3000 USD $15.21425
Inventory: 5508
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 30-PowerSOP (0.630, 16.00mm Width)
Number of Pins 30
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series VIPower?
JESD-609 Code e3
Feature Auto Restart
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 30
ECCN Code EAR99
Resistance 4mOhm
Terminal Finish Matte Tin (Sn) - annealed
Subcategory Peripheral Drivers
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 250
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number VND5E004
Pin Count 30
Number of Outputs 2
Output Type N-Channel
Max Output Current 90A
Operating Supply Voltage 13V
Interface On/Off
Current - Output (Max) 65A
Output Configuration High Side
Voltage - Supply (Vcc/Vdd) Not Required
Max Supply Current 6mA
Input Type Non-Inverting
Turn On Delay Time 25 μs
Switch Type General Purpose
Nominal Input Voltage 13V
Turn-Off Delay Time 35 μs
Ratio - Input:Output 1:1
Voltage - Load 4.5V~28V
Driver Number of Bits 2
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Rds On (Typ) 3m Ω
Output Current Flow Direction SINK
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
