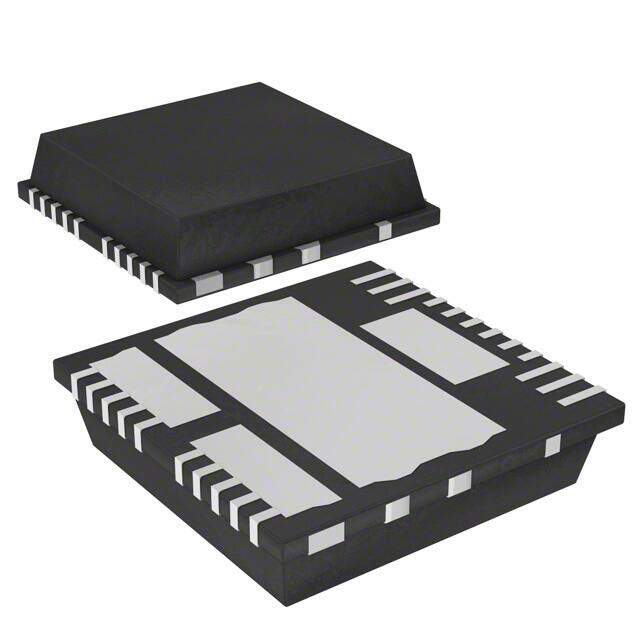

VND5004ATR-E
RoHS
RoHS compliant
RoHS compliantPackage 24-PowerDFN
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) VND5004 Current Limiting (Fixed) Over Temperature Over Voltage SINK power distribution switch 0.9mm 52V 25mus 100A
PDF
/
Buying Options
Total Price: USD $22.82
Unit Price: USD $22.8209
≥1 USD $22.8209
≥10 USD $18.72545
≥100 USD $18.14025
≥500 USD $17.55505
≥1000 USD $16.96985
Inventory: 8349
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Output Current Flow Direction SINK
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Rds On (Typ) 4m Ω (Max)
Output Peak Current Limit-Nom 100A
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Driver Number of Bits 2
Voltage - Load 4.5V~27V
Ratio - Input:Output 1:1
Turn-Off Delay Time 35 μs
Output Current per Channel 70A
Clamping Voltage 52V
Switch Type General Purpose
Turn On Delay Time 25 μs
Input Type Non-Inverting
Max Supply Current 6mA
Voltage - Supply (Vcc/Vdd) Not Required
Output Configuration High Side
Nominal Supply Current 6mA
Interface On/Off
Operating Supply Voltage 13V
Max Output Current 100A
Output Type N-Channel
Number of Outputs 2
JESD-30 Code S-PQCC-N16
Pin Count 16
Base Part Number VND5004
Current Rating 100A
Terminal Pitch 0.9mm
Supply Voltage 13V
Number of Functions 1
Terminal Position QUAD
Subcategory Peripheral Drivers
Resistance 4mOhm
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Auto Restart
Series VIPower?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 24
Package / Case 24-PowerDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 20 Weeks
Alternative Model
