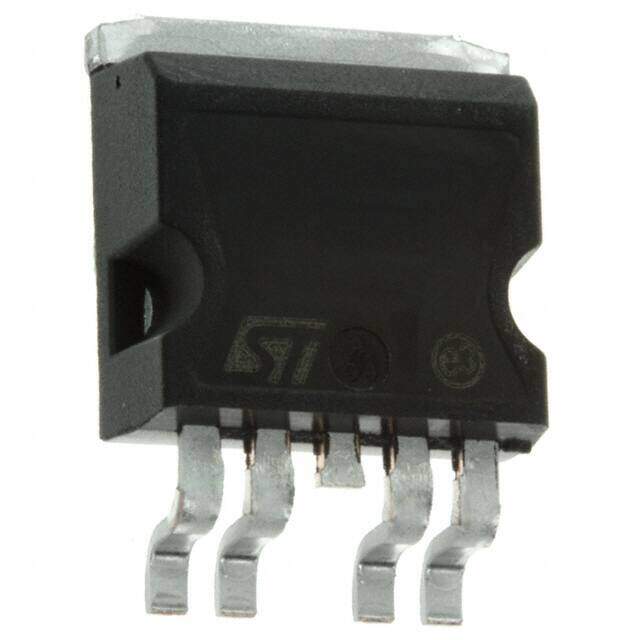

VN820-B5
RoHS
RoHS compliant
RoHS compliantPackage P2PAK (4 Leads + Tab)
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tube VN820 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage SOURCE power distribution switch 8/36V 30mus 9A 65.8W
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
Inventory: 1485
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case P2PAK (4 Leads + Tab)
Number of Pins 5
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tube
JESD-609 Code e0
Feature Auto Restart, Status Flag
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish TIN LEAD
Subcategory Peripheral Drivers
Max Power Dissipation 65.8W
Technology MOS
Terminal Position SINGLE
Terminal Form GULL WING
Number of Functions 1
Supply Voltage 13V
Base Part Number VN820
Pin Count 4
JESD-30 Code R-PSSO-G4
Number of Outputs 1
Output Type N-Channel
Max Output Current 9A
Supply Voltage-Max (Vsup) 36V
Power Supplies 8/36V
Interface On/Off
Nominal Supply Current 25mA
Output Configuration High Side
Power Dissipation 65.8W
Voltage - Supply (Vcc/Vdd) Not Required
Max Supply Current 3.5mA
Input Type Non-Inverting
Turn On Delay Time 30 μs
Switch Type General Purpose
Turn-Off Delay Time 30 μs
Ratio - Input:Output 1:1
Voltage - Load 5.5V~36V
Driver Number of Bits 1
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Output Peak Current Limit-Nom 13A
Rds On (Typ) 40m Ω (Max)
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Output Current Flow Direction SOURCE
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
