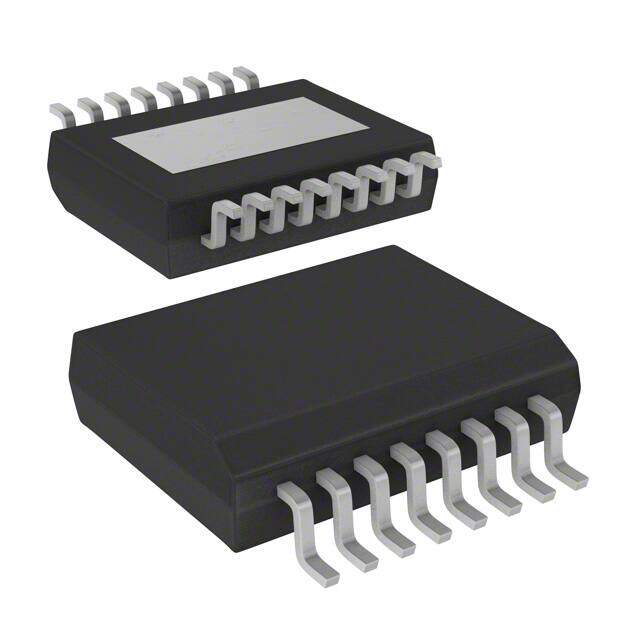

VN7016AJTR-E
RoHS
RoHS compliant
RoHS compliantPackage 16-PowerLFSOP (0.154, 3.90mm Width)
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Cut Tape (CT) VN7016 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage UVLO SINK power distribution switch 4.9mm 4V 120mus 55A
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 20061
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-PowerLFSOP (0.154, 3.90mm Width)
Number of Pins 16
Technical
Operating Temperature -40°C~150°C TJ
Packaging Cut Tape (CT)
Series VIPower?
Feature Auto Restart, Status Flag
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
ECCN Code EAR99
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Supply Voltage 13V
Terminal Pitch 0.5mm
Base Part Number VN7016
Number of Outputs 1
Output Type N-Channel
Max Output Current 55A
Supply Voltage-Max (Vsup) 28V
Supply Voltage-Min (Vsup) 4V
Interface On/Off
Output Configuration High Side
Voltage - Supply (Vcc/Vdd) Not Required
Max Supply Current 5mA
Input Type Non-Inverting
Turn On Delay Time 120 μs
Switch Type General Purpose
Turn-Off Delay Time 100 μs
Ratio - Input:Output 1:1
Voltage - Load 4V~28V
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Rds On (Typ) 16m Ω
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Output Current Flow Direction SINK
Dimensions
Length 4.9mm
Width 3.9mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
