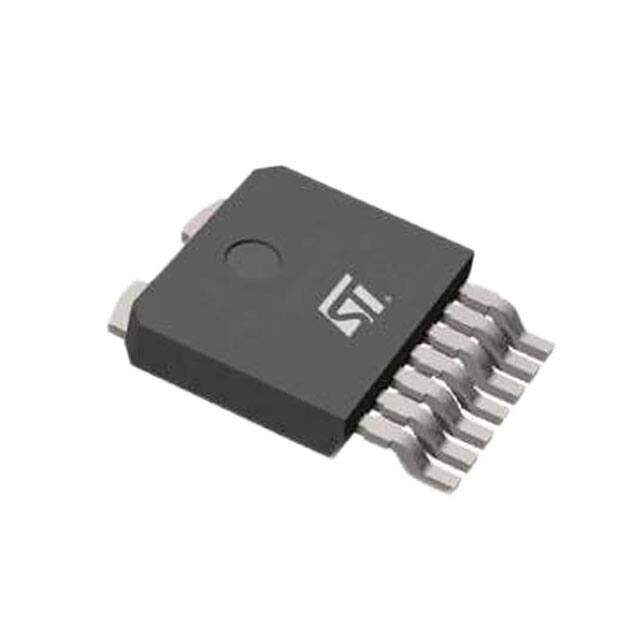

VN7007ALHTR
RoHS
RoHS compliant
RoHS compliantPackage OctaPAK (7 leads + Tab)
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) VN7007 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage UVLO On/Off power distribution switch 4V~28V 100A 7m Ohm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $3.4
Unit Price: USD $3.3968
≥1 USD $3.3968
≥10 USD $3.05184
≥100 USD $2.885344
≥500 USD $2.500784
≥1000 USD $2.372515
≥3000 USD $2.128861
Inventory: 1149
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Rds On (Typ) 7m Ω
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Voltage - Load 4V~28V
Ratio - Input:Output 1:1
Switch Type General Purpose
Input Type Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required
Output Configuration High Side
Interface On/Off
Max Output Current 100A
Output Type N-Channel
Number of Outputs 1
Base Part Number VN7007
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Auto Restart
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Package / Case OctaPAK (7 leads + Tab)
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 40 Weeks
