VN5T016AHTR-E
RoHS
RoHS compliant

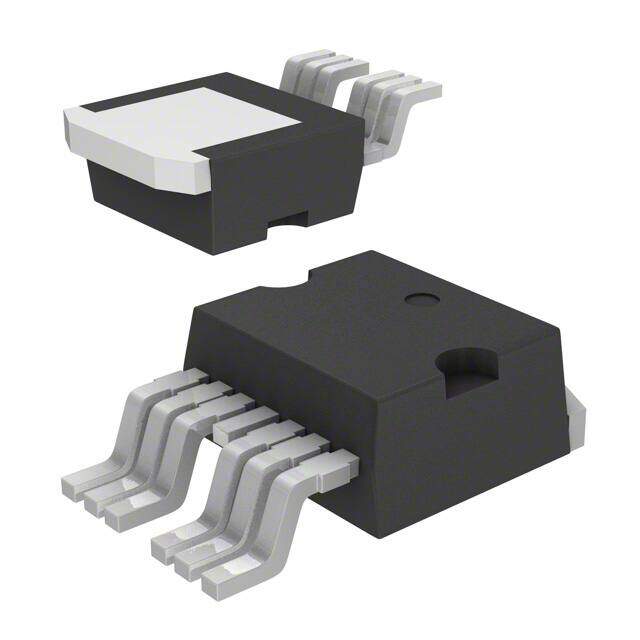

RoHS compliantPackage TO-263-7, D2Pak (6 Leads + Tab)
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) VN5T016 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage SINK power distribution switch 6.5mm 8V 43A 16m Ohm
PDF
/
Buying Options
Total Price: USD $3.38
Unit Price: USD $3.38344
≥1 USD $3.38344
≥10 USD $3.19192
≥100 USD $3.01125
≥500 USD $2.8408
≥1000 USD $2.68
Inventory: 8891
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 6.5mm
Height Seated (Max) 2.63mm
Technical
Output Current Flow Direction SINK
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Rds On (Typ) 16m Ω
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Voltage - Load 8V~36V
Ratio - Input:Output 1:1
Nominal Input Voltage 36V
Switch Type General Purpose
Input Type Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required
Output Configuration High Side
Interface On/Off
Supply Voltage-Min (Vsup) 8V
Max Output Current 43A
Output Type N-Channel
Number of Outputs 1
JESD-30 Code R-PSSO-G6
Pin Count 6
Base Part Number VN5T016
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Terminal Pitch 0.85mm
Supply Voltage 24V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position SINGLE
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series VIPower?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 7
Package / Case TO-263-7, D2Pak (6 Leads + Tab)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Silver, Tin
Supply Chain
Factory Lead Time 16 Weeks
