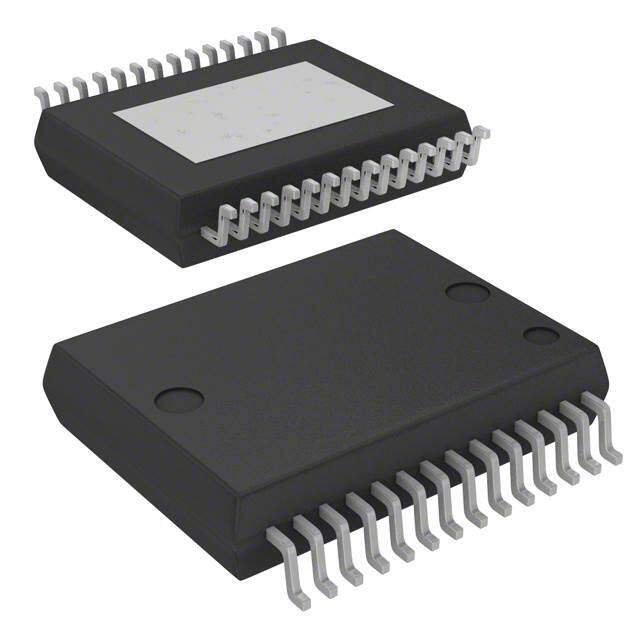

L9733XP
RoHS
RoHS compliant
RoHS compliantPackage 28-SSOP (0.295, 7.50mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tube L9733 Open Load Detect Over Temperature SOURCE power distribution switch 10.3mm 5V 20mus 800mA
PDF
/
Buying Options
Total Price: USD $15.21
Unit Price: USD $15.2076
≥1 USD $15.2076
≥10 USD $12.47825
≥100 USD $12.0878
≥500 USD $11.6983
≥1000 USD $11.30785
Inventory: 1652
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 7.5mm
Length 10.3mm
Height Seated (Max) 2.45mm
Technical
Output Current Flow Direction SOURCE
Built-in Protections OVER CURRENT; THERMAL
Rds On (Typ) 700m Ω (Max)
Output Peak Current Limit-Nom 1A
Number of Drivers 8
Fault Protection Open Load Detect, Over Temperature
Voltage - Load 4.5V~18V
Ratio - Input:Output 1:8
Turn-Off Delay Time 100 μs
Fall Time (Typ) 70 ns
Rise Time 70 ns
Output Current per Channel 1A
Switch Type General Purpose
Turn On Delay Time 20 μs
Input Type Non-Inverting
Max Supply Current 8.5mA
Voltage - Supply (Vcc/Vdd) 4.5V~5.5V
Output Configuration High Side or Low Side
Interface SPI
Power Supplies 5V
Operating Supply Voltage 5V
Max Output Current 800mA
Output Type N-Channel
Pin Count 28
Base Part Number L9733
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology MOS
Subcategory Peripheral Drivers
Resistance 700mOhm
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature PWM Input
Packaging Tube
Operating Temperature -40°C~125°C TA
Physical
Number of Pins 28
Package / Case 28-SSOP (0.295, 7.50mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Alternative Model
