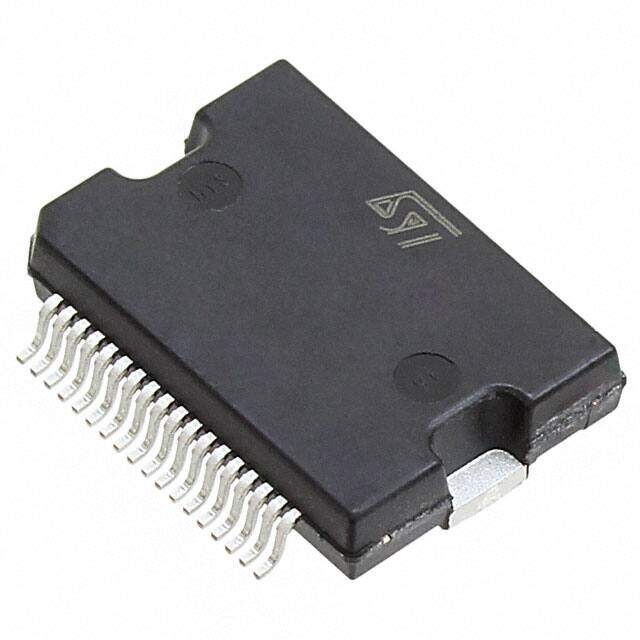

ISO8200BTR
RoHS
RoHS compliant
RoHS compliantPackage 36-BSSOP (0.433, 11.00mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Cut Tape (CT) ISO82 Current Limiting (Fixed) Over Temperature Parallel power distribution switch 15.9mm 36V 40ns 700mA
PDF
/
Buying Options
Total Price: USD $6.38
Unit Price: USD $6.38205
≥1 USD $6.38205
≥10 USD $6.0208
≥100 USD $5.68
≥500 USD $5.35849
≥1000 USD $5.05518
Inventory: 1920
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 11mm
Length 15.9mm
Height Seated (Max) 3.6mm
Technical
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Turn Off Time 40 μs
Rds On (Typ) 120m Ω
Output Peak Current Limit-Nom 1.1A
Fault Protection Current Limiting (Fixed), Over Temperature
Voltage - Load 10.5V~36V
Ratio - Input:Output 1:1
Turn-Off Delay Time 22 μs
Max Input Voltage 36V
Switch Type Relay, Solenoid Driver
Propagation Delay 40 ns
Output Current 700mA
Output Configuration High Side
Nominal Supply Current 9mA
Max Supply Voltage 45V
Interface Parallel
Max Output Current 700mA
Number of Outputs 8
Base Part Number ISO82
Terminal Pitch 0.65mm
Supply Voltage 24V
Number of Functions 1
Terminal Position DUAL
ECCN Code EAR99
Termination Gull Wing
Number of Terminations 36
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Auto Restart, Galvanic Isolation, Status Flag
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 36
Package / Case 36-BSSOP (0.433, 11.00mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 16 Weeks
