BDS2EJAAGUL-E2
RoHS
RoHS compliant

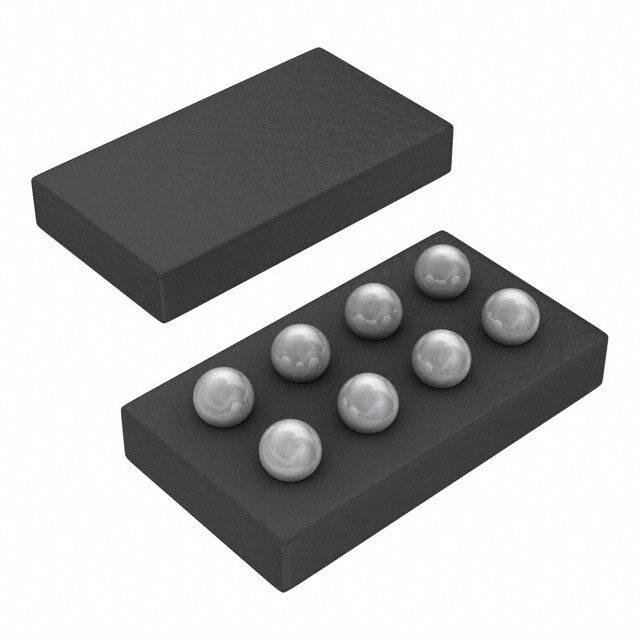

RoHS compliantPackage 8-UFBGA, CSPBGA
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) Current Limiting (Fixed) Over Temperature Reverse Current UVLO On/Off 2015 power distribution switch 0.5mm 3.3V 1A 45m Ohm
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.399122
≥1 USD $0.399122
≥200 USD $0.154922
≥500 USD $0.149671
≥1000 USD $0.147045
Inventory: 1482
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-UFBGA, CSPBGA
Surface Mount YES
Technical
Operating Temperature -40°C~100°C TA
Packaging Tape & Reel (TR)
Published 2015
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Subcategory Peripheral Drivers
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PBGA-B8
Number of Outputs 2
Qualification Status Not Qualified
Output Type N-Channel
Power Supplies 3.3V
Interface On/Off
Current - Output (Max) 1A
Output Configuration High Side
Voltage - Supply (Vcc/Vdd) Not Required
Input Type Non-Inverting
Switch Type General Purpose
Ratio - Input:Output 1:1
Voltage - Load 3.0V~3.6V
Driver Number of Bits 2
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Rds On (Typ) 45m Ω
Compliance
RoHS Status ROHS3 Compliant
