BD6529GUL-E2
RoHS
RoHS compliant

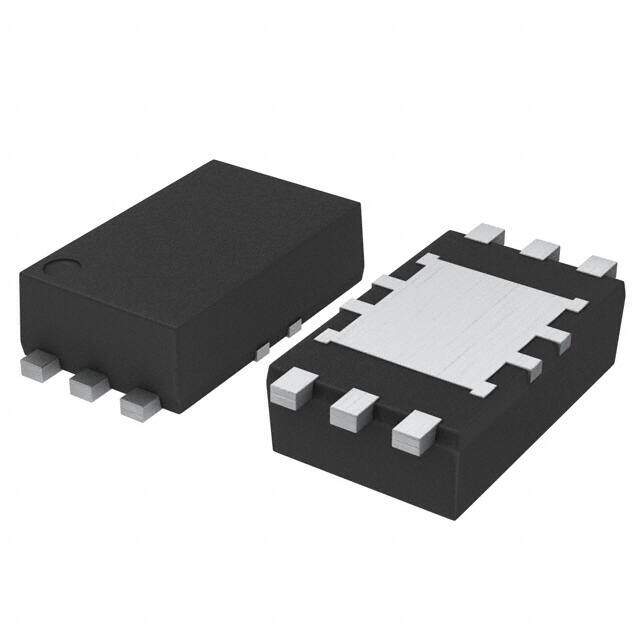

RoHS compliantPackage 6-SMD, Flat Lead Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Cut Tape (CT) On/Off Load Discharge Slew Rate Controlled 2009 power distribution switch 0.55mm 2.7V 500mA 100m Ohm
PDF
/
Buying Options
Total Price: USD $19.11
Unit Price: USD $19.10925
≥1 USD $19.10925
≥10 USD $15.67975
≥100 USD $15.18955
≥500 USD $14.69935
≥1000 USD $14.2101
Inventory: 1528
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.55mm
Technical
Rds On (Typ) 100m Ω
Voltage - Load 2.7V~4.5V
Ratio - Input:Output 1:1
Nominal Input Voltage 4.5V
Supply Current-Max (Isup) 0.03mA
Switch Type General Purpose
Input Type Non-Inverting
Adjustable Threshold NO
Voltage - Supply (Vcc/Vdd) Not Required
Output Configuration High Side
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Interface On/Off
Number of Channels 1
Supply Voltage-Min (Vsup) 2.7V
Power Supplies 3.3V
Max Output Current 500mA
Output Type N-Channel
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PBGA-B6
Pin Count 6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Power Management Circuits
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Load Discharge, Slew Rate Controlled
Published 2009
Packaging Cut Tape (CT)
Operating Temperature -25°C~85°C TA
Physical
Surface Mount YES
Package / Case 6-SMD, Flat Lead Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
