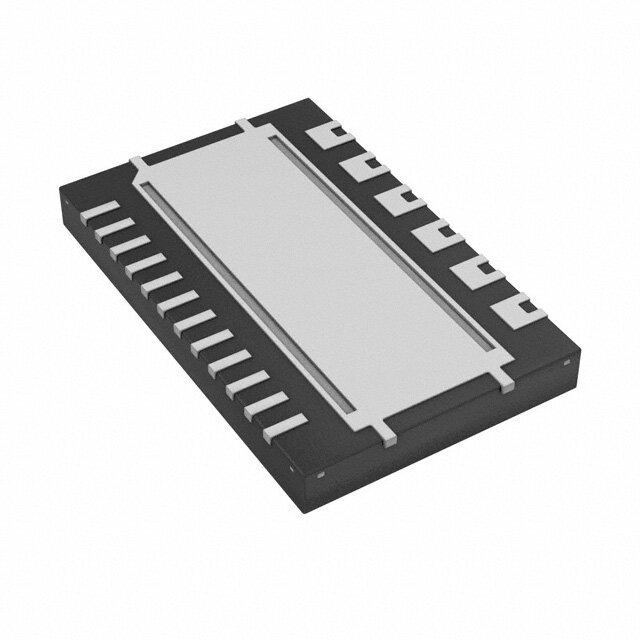

BTS54220LBAAUMA1
RoHS
RoHS compliant
RoHS compliantPackage 24-PowerVDFN
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
SPOC SPI POWER CONTROLLER
PDF
/
Buying Options
Total Price: USD $49.99
Unit Price: USD $49.98805
≥1 USD $49.98805
≥10 USD $41.01625
≥100 USD $39.7347
≥500 USD $38.4522
≥1000 USD $37.17065
Inventory: 1135
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 24-PowerVDFN
Supplier Device Package PG-TSON-24-3
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
Feature Slew Rate Controlled
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Outputs 4
Output Type N-Channel
Interface SPI
Output Configuration High Side
Voltage - Supply (Vcc/Vdd) 3.8V~5.5V
Switch Type General Purpose
Ratio - Input:Output 1:1
Voltage - Load 5.5V~28V
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Rds On (Typ) 9mOhm, 27mOhm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
