FPF1104
RoHS
/

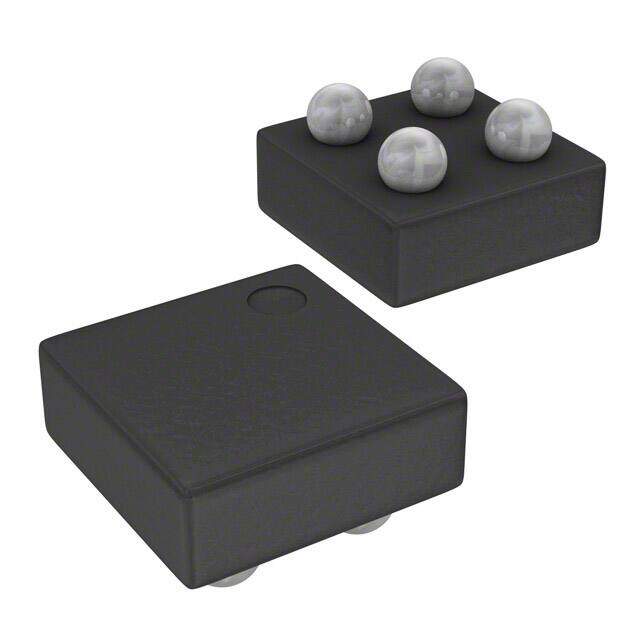

Package 4-UFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) FPF1104 e1 On/Off power distribution switch 960mum 4V 50mus 1.2A
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.2288
≥1 USD $0.2288
Inventory: 231161
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-UFBGA, WLCSP
Number of Pins 4
Weight 42mg
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series IntelliMAX?
JESD-609 Code e1
Feature Load Discharge, Slew Rate Controlled
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Resistance 150mOhm
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Peripheral Drivers
Max Power Dissipation 1W
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number FPF1104
Number of Outputs 1
Qualification Status Not Qualified
Output Type P-Channel
Max Output Current 1.2A
Voltage 4V
Interface On/Off
Nominal Supply Current 3μA
Current 1.2A
Output Configuration High Side
Power Dissipation 1W
Voltage - Supply (Vcc/Vdd) Not Required
Input Type Non-Inverting
Turn On Delay Time 50 μs
Switch Type General Purpose
Min Input Voltage 1.2V
Max Input Voltage 4V
Turn-Off Delay Time 2.5 μs
Ratio - Input:Output 1:1
Voltage - Load 1.2V~4V
Driver Number of Bits 1
Rds On (Typ) 35m Ω
Dimensions
Height 332μm
Length 960μm
Width 960μm
Compliance
RoHS Status RoHS Compliant
