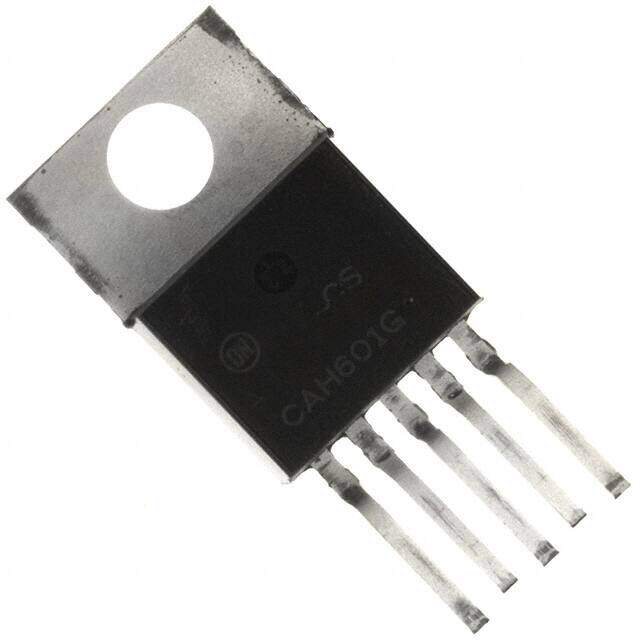

CS8240YTQVA5
RoHS
/
Package TO-220-5 Formed Leads
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tube CS8240 Current Limiting (Fixed) Open Load Detect Over Temperature SOURCE power distribution switch 6V 20μs 550mA -40C~150C TJ
PDF
/
Inventory: 9528
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Peripheral Drivers
Terminal Position ZIG-ZAG
Number of Functions 1
Supply Voltage 12V
Reach Compliance Code not_compliant
Base Part Number CS8240
Pin Count 3
JESD-30 Code R-PZFM-T5
Number of Outputs 1
Qualification Status Not Qualified
Output Type Bipolar
Max Output Current 550mA
Power Supplies 6/24V
Supply Voltage-Min (Vsup) 6V
Interface On/Off
Output Configuration High Side
Voltage - Supply (Vcc/Vdd) Not Required
Input Type Non-Inverting
Switch Type General Purpose
Ratio - Input:Output 1:1
Voltage - Load 6V~26V
Driver Number of Bits 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Published 2001
Packaging Tube
Operating Temperature -40°C~150°C TJ
Output Current Flow Direction SOURCE
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Turn Off Time 20 μs
Output Peak Current Limit-Nom 1.1A
Turn On Time 20 μs
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature
Physical
Surface Mount NO
Package / Case TO-220-5 Formed Leads
Mounting Type Through Hole
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
