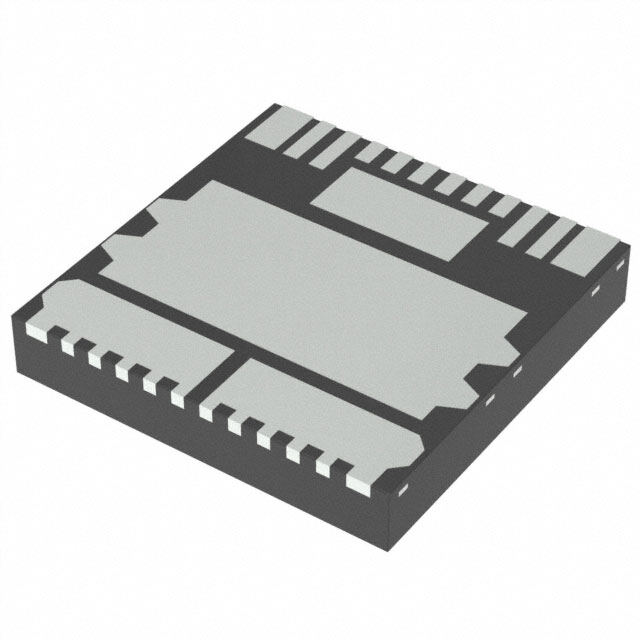

MC33982CHFKR2
RoHS
RoHS compliant
RoHS compliantPackage 16-PowerQFN
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) MC33982 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage SINK power distribution switch 2.2mm 6V 250mus 2m Ohm
PDF
/
Buying Options
Total Price: USD $199.64
Unit Price: USD $199.63775
≥1 USD $199.63775
≥10 USD $178.9857
Inventory: 991
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 2.2mm
Technical
Output Current Flow Direction SINK
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Turn Off Time 250 μs
Rds On (Typ) 2m Ω
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Driver Number of Bits 1
Voltage - Load 6V~27V
Ratio - Input:Output 1:1
Switch Type General Purpose
Voltage - Supply (Vcc/Vdd) 4.5V~5.5V
Output Configuration High Side
Interface SPI
Supply Voltage-Min (Vsup) 6V
Power Supplies 56/27V
Supply Voltage-Max (Vsup) 27V
Output Type N-Channel
Qualification Status Not Qualified
Number of Outputs 1
Base Part Number MC33982
Time@Peak Reflow Temperature-Max (s) 30
Supply Voltage 12V
Number of Functions 1
Peak Reflow Temperature (Cel) 230
Terminal Form BUTT
Terminal Position BOTTOM
Subcategory Peripheral Drivers
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Slew Rate Controlled, Watchdog Timer
Published 2004
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Surface Mount YES
Package / Case 16-PowerQFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
