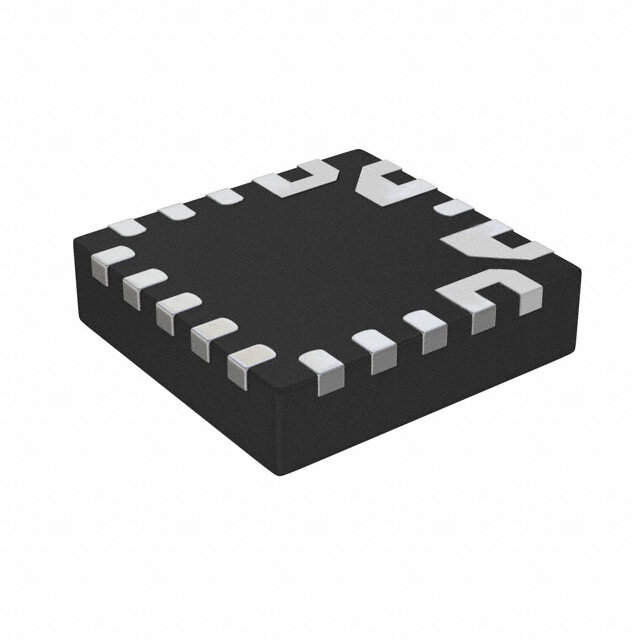

UCS2114-1-V/LX
RoHS
RoHS compliant
RoHS compliantPackage 20-VFQFN
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tube Current Limiting (Fixed) Over Temperature Over Voltage UVLO I2C SMBus High Side power distribution switch 2.9V~5.5V 3A 18m Ohm -40C~105C TA
PDF
/
Buying Options
Total Price: USD $3.03
Unit Price: USD $3.0272
≥1 USD $3.0272
≥10 USD $2.5432
≥100 USD $2.453
Inventory: 2982
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Rds On (Typ) 18m Ω
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Voltage - Load 2.9V~5.5V
Ratio - Input:Output 1:1
Switch Type USB Switch
Voltage - Supply (Vcc/Vdd) 4.5V~5.5V
Output Configuration High Side
Current - Output (Max) 3A
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Interface I2C, SMBus
Number of Outputs 2
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Packaging Tube
Operating Temperature -40°C~105°C TA
Physical
Package / Case 20-VFQFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
