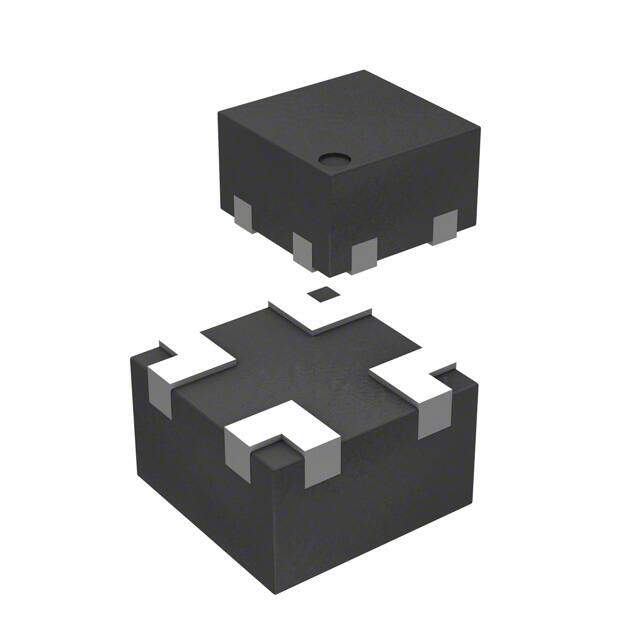

MIC94041YFL-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-WQFN, 4-MLF?
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) MIC94041 SOURCE On/Off power distribution switch 0.8mm 5.5V 0.005mus 3A
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
≥10 USD $0.6688
≥100 USD $0.6072
Inventory: 22902
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.8mm
Technical
Output Current Flow Direction SOURCE
Rds On (Typ) 28m Ω
Turn On Time 0.005 μs
Voltage - Load 1.7V~5.5V
Ratio - Input:Output 1:1
Nominal Input Voltage 5.5V
Switch Type General Purpose
Input Type Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required
Output Configuration High Side
Current - Output (Max) 3A
Interface On/Off
Output Type P-Channel
Number of Outputs 1
JESD-30 Code S-XQCC-N4
Base Part Number MIC94041
Terminal Pitch 0.65mm
Supply Voltage 2.5V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position QUAD
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Load Discharge
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 4-WQFN, 4-MLF?
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
