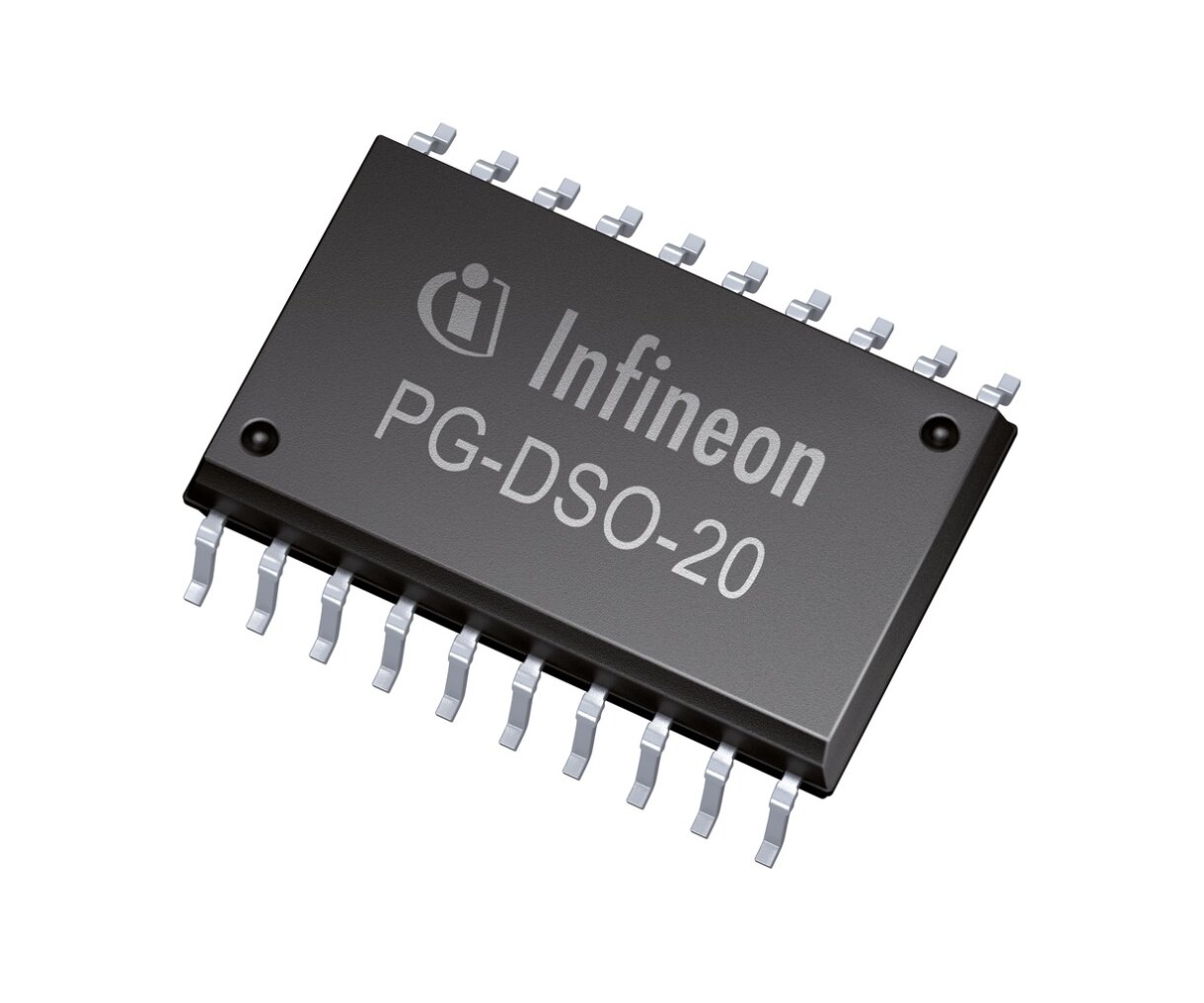

TLE8104EXUMA2
RoHS
RoHS compliant
RoHS compliantPackage 20-SOIC (0.295, 7.50mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) TLE8104 Open Load Detect Over Temperature Over Voltage e3 power distribution switch 12.8mm 60V 10mus 1A
PDF
/
Buying Options
Total Price: USD $4.56
Unit Price: USD $4.56475
≥1 USD $4.56475
≥10 USD $3.7449
≥100 USD $3.62805
≥500 USD $3.5112
≥1000 USD $3.39435
Inventory: 22648
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295, 7.50mm Width) Exposed Pad
Number of Pins 20
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2010
Series Automotive, AEC Qualified
JESD-609 Code e3
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Tin (Sn)
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 1.27mm
Base Part Number TLE8104
Pin Count 20
Number of Outputs 4
Output Type N-Channel
Max Output Current 1A
Interface SPI
Nominal Supply Current 1mA
Output Configuration Low Side
Output Current 3A
Switch Type General Purpose
Halogen Free Halogen Free
Drain to Source Voltage (Vdss) 60V
Nominal Input Voltage 5.5V
Ratio - Input:Output 1:1
Voltage - Load 4.5V~5.5V
Max Dual Supply Voltage 60V
Min Dual Supply Voltage 45V
Fault Protection Open Load Detect, Over Temperature, Over Voltage
Turn On Time 10 μs
Output Peak Current Limit-Nom 4.5A
Rds On (Typ) 320m Ω
Turn Off Time 10 μs
Built-in Protections TRANSIENT; OVER VOLTAGE; THERMAL
Dimensions
Height Seated (Max) 2.65mm
Length 12.8mm
Width 7.6mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
