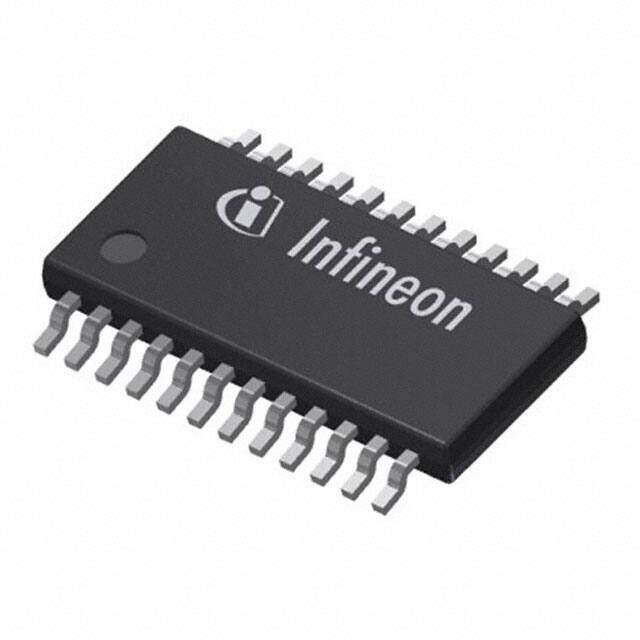

TLE75080ESHXUMA1
RoHS
RoHS compliant
RoHS compliantPackage 24-TSSOP (0.154, 3.90mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage SPI Automotive AEC-Q100 power distribution switch 3V~28V 330mA 1Ohm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
≥10 USD $2.20968
≥100 USD $2.08912
≥500 USD $1.8106
≥1000 USD $1.717795
≥3000 USD $1.541355
Inventory: 3359
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Mounting Type Surface Mount
Package / Case 24-TSSOP (0.154, 3.90mm Width) Exposed Pad
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
Feature Slew Rate Controlled
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code EAR99
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 8
Output Type N-Channel
Interface SPI
Current - Output (Max) 330mA
Output Configuration High Side
Voltage - Supply (Vcc/Vdd) 3V~5.5V
Switch Type Relay, Solenoid Driver
Ratio - Input:Output 1:8
Voltage - Load 3V~28V
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Rds On (Typ) 1 Ω
Compliance
RoHS Status ROHS3 Compliant
