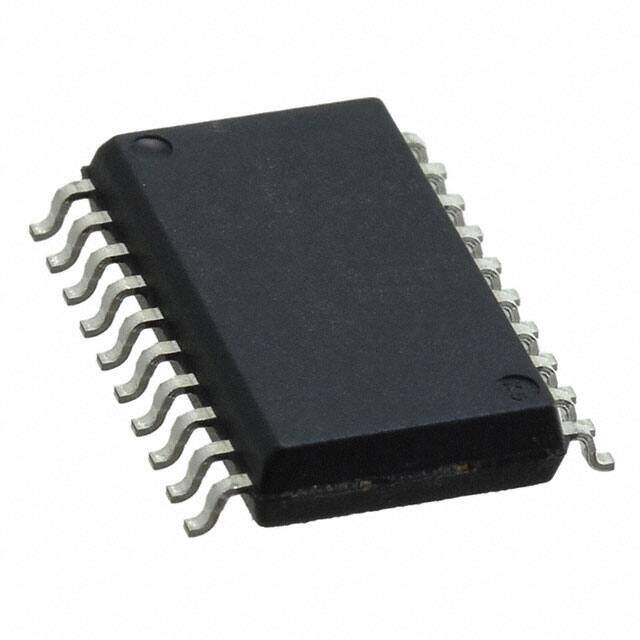

TLE7241EXUMA1
RoHS
/
Package 20-SOIC (0.295, 7.50mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tape & Reel (TR) TLE7241 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage e3 power distribution switch 7.6mm 4.75V 1.2A 240m Ohm
PDF
/
Inventory: 6375
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Width 7.6mm
Technical
Rds On (Typ) 240m Ω
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Voltage - Load 9V~18V
Ratio - Input:Output 1:2
Switch Type Relay, Solenoid Driver
Voltage - Supply (Vcc/Vdd) 4.75V~5.25V
Output Configuration Low Side
Current - Output (Max) 1.2A
Analog IC - Other Type ANALOG CIRCUIT
Interface SPI
Supply Voltage-Min (Vsup) 4.75V
Output Type N-Channel
Qualification Status Not Qualified
Number of Outputs 2
Pin Count 20
Base Part Number TLE7241
Time@Peak Reflow Temperature-Max (s) 40
Supply Voltage 5V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature ALSO REQIRES 9 TO 18 VBB SUPPLY
Terminal Finish MATTE TIN
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Feature Slew Rate Controlled
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Surface Mount YES
Package / Case 20-SOIC (0.295, 7.50mm Width) Exposed Pad
Mounting Type Surface Mount
