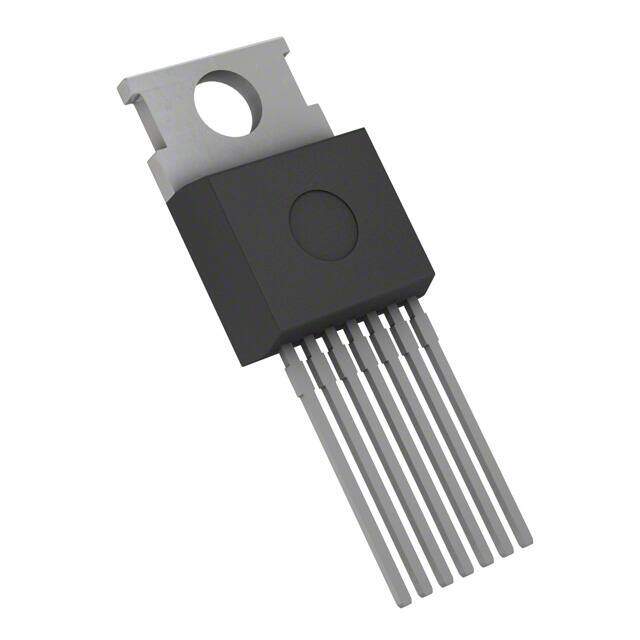

BTS611L1E3230
RoHS
RoHS compliant
RoHS compliantPackage TO-220-7
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Bulk BTS611L1 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage On/Off power distribution switch 5V 400mus 1.8A 36W
PDF
/
Buying Options
Total Price: USD $0.44
Unit Price: USD $0.438008
≥1 USD $0.438008
≥10 USD $0.413212
≥100 USD $0.389823
≥500 USD $0.367755
≥1000 USD $0.346938
Inventory: 1167
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Turn Off Time 400 μs
Rds On (Typ) 160m Ω
Output Peak Current Limit-Nom 7.5A
Turn On Time 400 μs
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Driver Number of Bits 2
Voltage - Load 5V~34V
Ratio - Input:Output 1:1
Switch Type General Purpose
Input Type Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required
Output Current 1.8A
Power Dissipation 36W
Output Configuration High Side
Nominal Supply Current 4mA
Interface On/Off
Supply Voltage-Min (Vsup) 5V
Supply Voltage-Max (Vsup) 34V
Max Output Current 1.8A
Output Type N-Channel
Qualification Status Not Qualified
Number of Outputs 2
Pin Count 3
Base Part Number BTS611L1
Reach Compliance Code unknown
Supply Voltage 12V
Number of Functions 2
Terminal Position SINGLE
Technology MOS
Subcategory Peripheral Drivers
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Feature Auto Restart, Status Flag
Series PROFET?
Published 2003
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 7
Package / Case TO-220-7
Mounting Type Through Hole
Mount Through Hole
