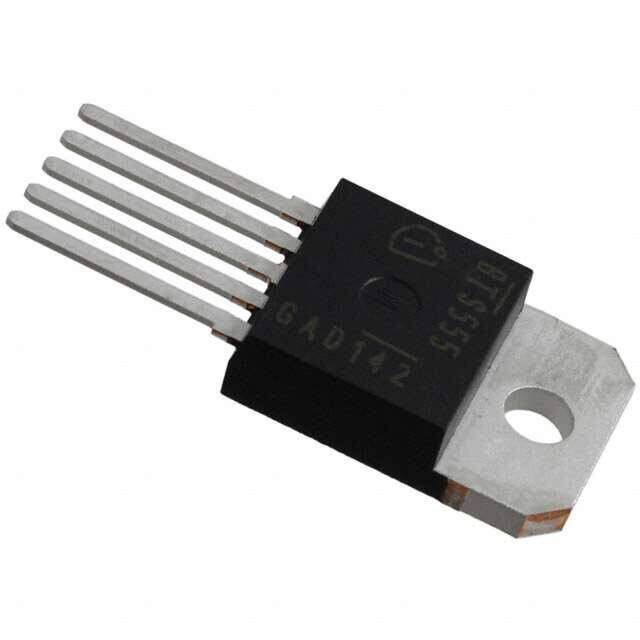

BTS555 E3146
RoHS
/
Package TO-218-5
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tube BTS555 Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage SINK power distribution switch 2.54mm 5V 200mus 128A
PDF
/
Buying Options
Total Price: USD $48.33
Unit Price: USD $48.3265
≥1 USD $48.3265
≥10 USD $39.653
≥100 USD $38.41325
≥500 USD $37.17445
≥1000 USD $35.93565
Inventory: 1195
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Output Current Flow Direction SINK
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Turn Off Time 200 μs
Rds On (Typ) 1.9m Ω
Output Peak Current Limit-Nom 520A
Turn On Time 600 μs
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Driver Number of Bits 1
Voltage - Load 5V~34V
Ratio - Input:Output 1:1
Switch Type General Purpose
Input Type Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required
Output Configuration High Side
Current - Output (Max) 128A
Interface On/Off
Supply Voltage-Min (Vsup) 5V
Supply Voltage-Max (Vsup) 34V
Output Type N-Channel
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PSFM-T5
Pin Count 3
Base Part Number BTS555
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Supply Voltage 12V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology MOS
Subcategory Peripheral Drivers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series PROFET?
Published 2008
Packaging Tube
Operating Temperature -40°C~150°C TJ
Physical
Surface Mount NO
Package / Case TO-218-5
Mounting Type Through Hole
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
