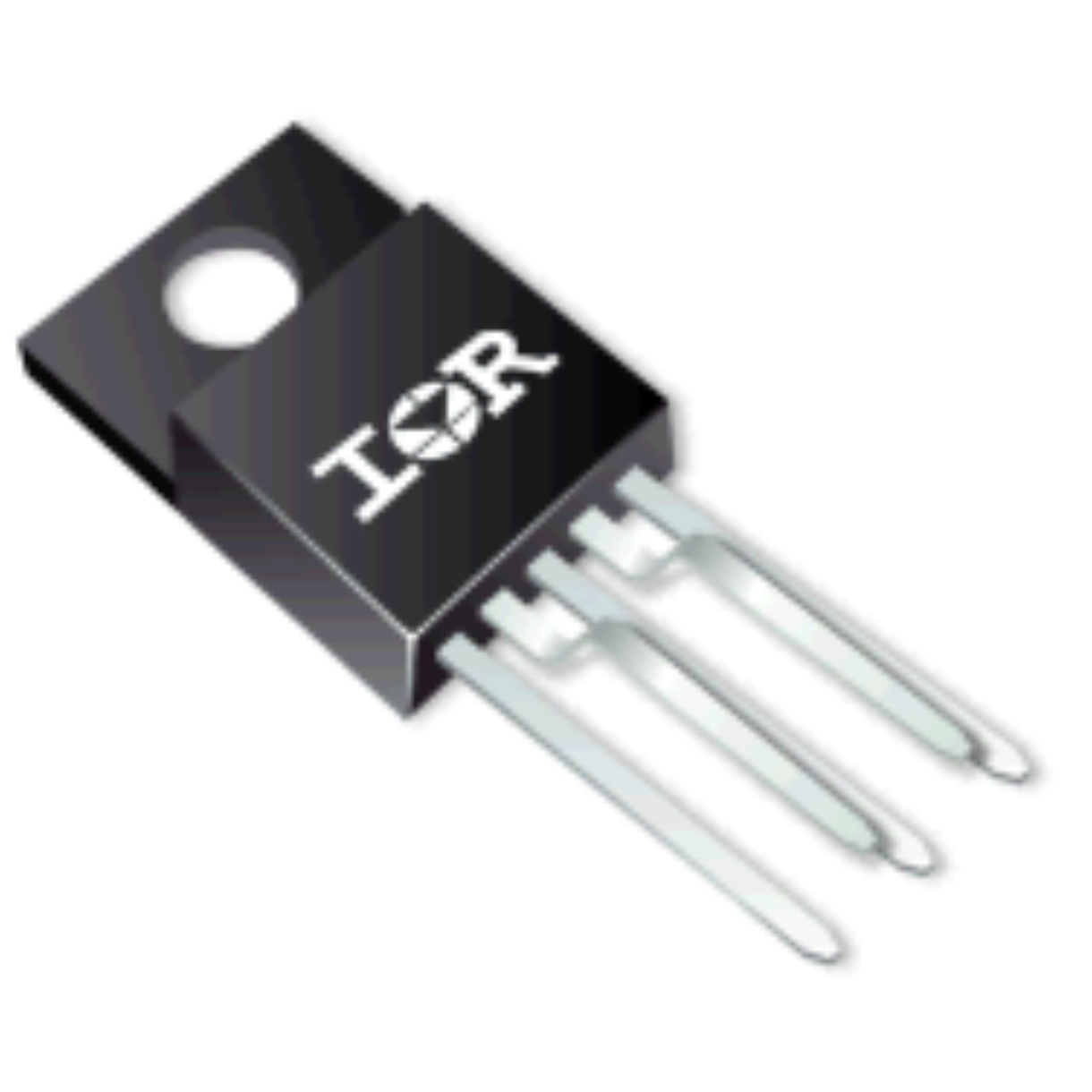

AUIR3317
RoHS
/
Package TO-220-5
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
Tube AUIR3317 Current Limiting (Fixed) Over Temperature On/Off power distribution switch 10.67mm 26V 300mus 23A
PDF
/
Buying Options
Total Price: USD $8.3
Unit Price: USD $8.2954
≥1 USD $8.2954
≥10 USD $6.80675
≥100 USD $6.59395
≥500 USD $6.38115
≥1000 USD $6.16835
Inventory: 1087
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 4.83mm
Length 10.67mm
Height 16.51mm
Technical
Built-in Protections TRANSIENT; OVER CURRENT; THERMAL
Rds On (Typ) 5.5m Ω
Fault Protection Current Limiting (Fixed), Over Temperature
Driver Number of Bits 1
Voltage - Load 6V~26V
Ratio - Input:Output 1:1
Turn-Off Delay Time 350 μs
Nominal Input Voltage 26V
Fall Time (Typ) 100 μs
Rise Time 80 μs
Output Current per Channel 7A
Switch Type General Purpose
Turn On Delay Time 300 μs
Input Type Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required
Output Current 23A
Power Dissipation 2W
Output Configuration High Side
Current 23A
Interface On/Off
Voltage 37V
Max Output Current 120A
Output Type N-Channel
Number of Outputs 1
Base Part Number AUIR3317
Supply Voltage 14V
Number of Functions 1
Terminal Position SINGLE
Max Power Dissipation 2W
Power Rating 2W
Subcategory Peripheral Drivers
Resistance 5.5mOhm
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Automotive, AEC-Q100
Published 2010
Packaging Tube
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 5
Package / Case TO-220-5
Mounting Type Through Hole
Mount Through Hole
