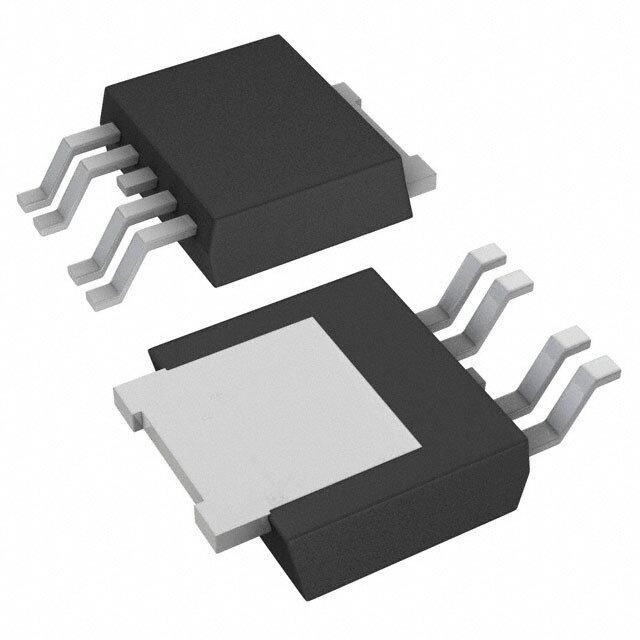

BTS6163D
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Power Distribution Switches, Load Drivers
Description
SINK e3 TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE Not Qualified power distribution switch 6.5mm 5.5V 550mus 5.5A
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.52495
≥1 USD $2.52495
≥10 USD $2.38203
≥100 USD $2.2472
≥500 USD $2.12
≥1000 USD $2
≥3000 USD $1.88679
Inventory: 2839
Minimum: 1
-
+
Technical Details
Physical
Surface Mount YES
Number of Terminals 4
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 6.22mm
Length 6.5mm
Height Seated (Max) 2.5mm
Technical
Output Current Flow Direction SINK
Built-in Protections TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Turn Off Time 550 μs
Output Peak Current Limit-Nom 5.5A
Turn On Time 300 μs
Screening Level AEC-Q100
Driver Number of Bits 1
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
Supply Voltage-Min (Vsup) 5.5V
Power Supplies 5.5/24V
Supply Voltage-Max (Vsup) 62V
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G4
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 1.14mm
Supply Voltage 24V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position SINGLE
Subcategory Peripheral Drivers
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3
Pbfree Code icon-pbfree yes
JESD-609 Code e3
