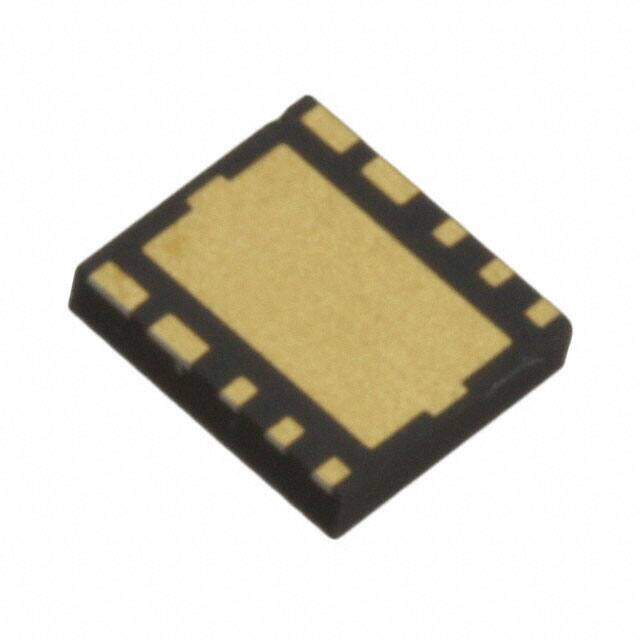

TPS2113ADRBT image
Favorite
TPS2113ADRBT image
Favorite

TPS2113ADRBT

Texas Instruments
RoHS
RoHS RoHS compliant
Package 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - OR Controllers, Ideal Diodes
Description ACTIVE (Last Updated: 4days ago) Tape & Reel (TR) Handheld/Mobile Devices e4 ideal diode 1.25A 0.65mm 2.8V~5.5V 5ms
PDF
/
Buying Options
Total Price: USD $2.35
Unit Price: USD $2.3496
≥1 USD $2.3496
≥10 USD $2.1076
≥100 USD $1.9888
≥500 USD $1.694352
Inventory: 1081
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)

Physical

Mounting Type Surface Mount
Package / Case 8-VDFN Exposed Pad
Surface Mount YES
Number of Pins 8

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
ECCN Code EAR99
Type Source Selector Switch
Resistance 110Ohm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications Handheld/Mobile Devices
Subcategory Power Management Circuits
Max Power Dissipation 1W
Voltage - Supply 2.8V~5.5V
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 2.8V
Terminal Pitch 0.65mm
Base Part Number TPS2113
Pin Count 8
Max Output Current 1.25A
Operating Supply Voltage 5.5V
Number of Channels 1
Operating Supply Current 55μA
Output Current 2A
Max Supply Current 55μA
Adjustable Threshold YES
Propagation Delay 280 ps
Turn On Delay Time 1 ms
Min Input Voltage 2.8V
FET Type N-Channel
Number of Inputs 2
Max Input Voltage 5.5V
Ratio - Input:Output 2:1
Internal Switch(s) Yes
Current - Output 2 1.25A
Delay Time - OFF 5ms

Dimensions

Height 1mm
Length 3mm
Width 3mm
Thickness 880μm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
