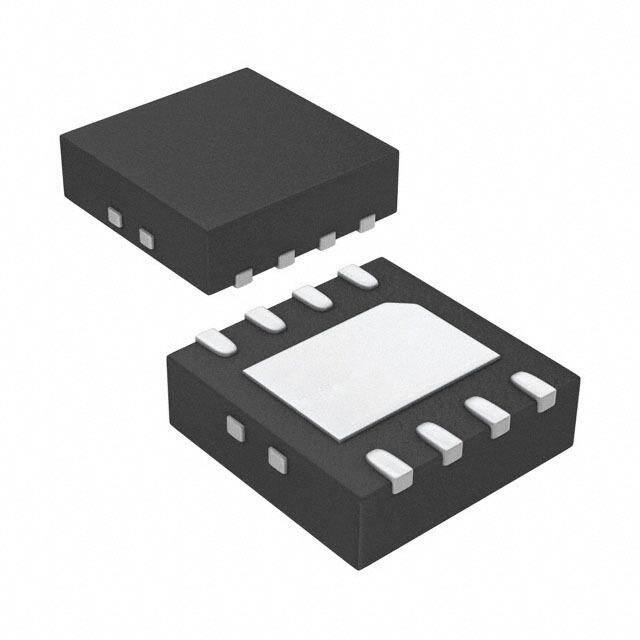

ISL6146CFRZ
RoHS
/
Package DFN
Category Integrated Circuits (ICs) / PMIC - OR Controllers, Ideal Diodes
Description
RoHS Compliant AUTOMOTIVE Surface Mount NO LEAD OR Controller (Type) 125C 65ns 20V 0.65mm
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.721212
≥1 USD $1.721212
≥200 USD $0.666953
≥500 USD $0.643321
≥1000 USD $0.631505
Inventory: 1838
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Package / Case DFN
Weight 37.393021mg
Technical
Published 2011
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 12V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 8, 8
JESD-30 Code S-PDSO-N8
Temperature Grade AUTOMOTIVE
Max Supply Voltage 20V
Min Supply Voltage 1V
Operating Supply Current 25μA
Turn-Off Delay Time 65 ns
Interface IC Type BUFFER OR INVERTER BASED MOSFET DRIVER
Number of Drivers 1
High Side Driver NO
Dimensions
Height 950μm
Length 3mm
Width 3mm
Compliance
RoHS Status RoHS Compliant
