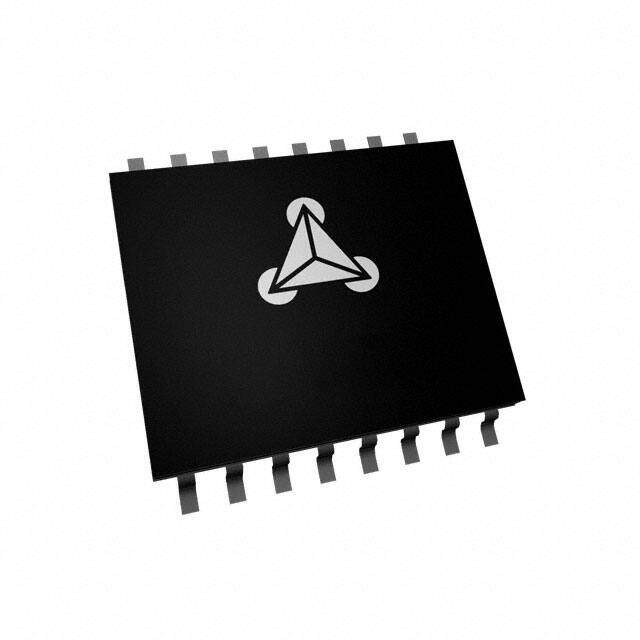

TMC4210-I
RoHS
RoHS compliant
RoHS compliantPackage 16-SSOP (0.154, 3.90mm Width)
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
CMOS Tube ALSO REQUIRE SUPPLY 4.5V TO 5.5V General Purpose motor driver 3.3V 3.91mm -40C~105C TA
PDF
/
Buying Options
Total Price: USD $6.83
Unit Price: USD $6.8288
≥1 USD $6.8288
≥10 USD $6.17232
≥100 USD $5.885088
≥500 USD $5.110072
≥1000 USD $4.880392
≥3000 USD $4.449773
Inventory: 1035
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.91mm
Length 4.93mm
Height Seated (Max) 1.73mm
Technical
Step Resolution >256 Microsteps
Motor Type - Stepper Bipolar
Output Configuration Step/Direction
Analog IC - Other Type STEPPER MOTOR CONTROLLER
Interface SPI
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 3.6V
Function Controller - Commutation, Direction Management
JESD-30 Code R-PDSO-G16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.635mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 3.3V~5V
Technology CMOS
HTS Code 8542.39.00.01
Additional Feature ALSO REQUIRE SUPPLY 4.5V TO 5.5V
Applications General Purpose
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Published 2015
Packaging Tube
Operating Temperature -40°C~105°C TA
Physical
Package / Case 16-SSOP (0.154, 3.90mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
