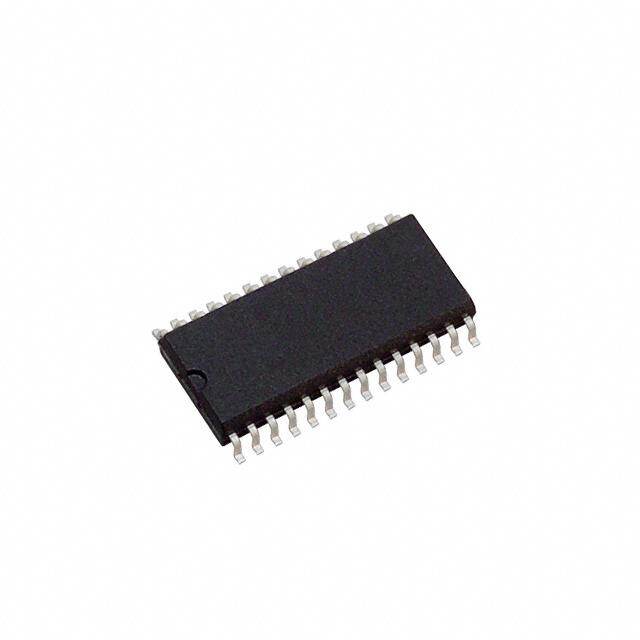

UC3625DWTRG4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
BIPOLAR Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) 8542.39.00.01 motor controller 18V 200mA 7.5mm 70C
PDF
/
Buying Options
Total Price: USD $1.27
Unit Price: USD $1.268999
≥1 USD $1.268999
≥10 USD $1.197176
≥100 USD $1.129403
≥500 USD $1.065475
≥1000 USD $1.005162
Inventory: 1539
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.5mm
Length 17.9mm
Height Seated (Max) 2.65mm
Technical
Supply Current-Max (Isup) 30mA
Voltage - Output 50V
Current - Output 200mA
Nominal Supply Current 14.5mA
Analog IC - Other Type BRUSHLESS DC MOTOR CONTROLLER
Min Supply Voltage 10V
Max Supply Voltage 18V
Interface Parallel
Temperature Grade COMMERCIAL
Power Supplies 12V
Max Output Current 500mA
Pin Count 28
Terminal Pitch 1.27mm
Supply Voltage 12V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Motion Control Electronics
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4
Packaging Tape & Reel (TR)
Physical
Weight 792.000628mg
Number of Pins 28
Surface Mount YES
Package / Case SOIC
