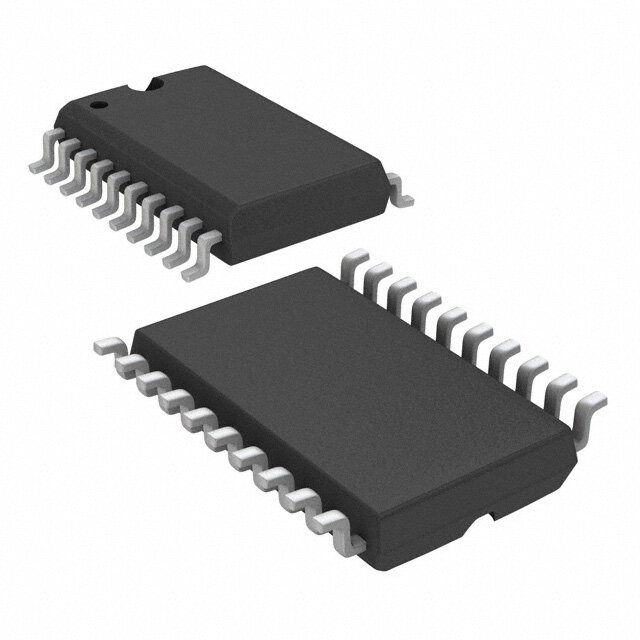

UC2637DWTRG4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
RoHS Compliant Lead Free DUAL GULL WING motor driver 85C 7.5mm 100mA 36V
PDF
/
Buying Options
Total Price: USD $3.65
Unit Price: USD $3.650686
≥1 USD $3.650686
≥10 USD $3.444039
≥100 USD $3.249097
≥500 USD $3.065183
≥1000 USD $2.891683
Inventory: 982
Minimum: 1
-
+
Technical Details
Technical
Min Operating Temperature -25°C
Subcategory Motion Control Electronics
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 15V
Pin Count 20
Number of Outputs 1
Max Output Current 400mA
Temperature Grade OTHER
Max Supply Voltage 36V
Min Supply Voltage 5V
Analog IC - Other Type BRUSH DC MOTOR CONTROLLER
Nominal Supply Current 8.5mA
Current - Output 100mA
Voltage - Output 13.5V
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4
Packaging Tape & Reel (TR)
Dimensions
Height Seated (Max) 2.65mm
Width 7.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Weight 569.003279mg
Number of Pins 20
Surface Mount YES
Package / Case SOIC
