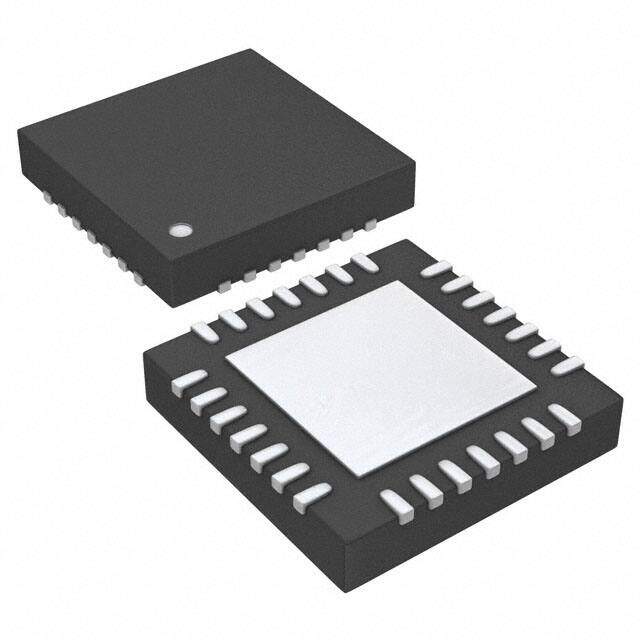

DRV8824RHDR
RoHS
RoHS compliant
RoHS compliantPackage 28-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
ROHS3Compliant Lead Free QUAD NO LEAD (Motor Type - AC, DC) Motor Driver -40C~150C TJ 5mm 1.6A 1.28Ohm
PDF
/
Buying Options
Total Price: USD $2.08
Unit Price: USD $2.080505
≥1 USD $2.080505
Inventory: 1320
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-VFQFN Exposed Pad
Number of Pins 28
Weight 71.610895mg
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 28
Type Integrated Circuit (IC)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications General Purpose
Subcategory Motion Control Electronics
Technology Power MOSFET
Voltage - Supply 8.2V~45V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Supply Voltage 24V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number DRV8824
Function Driver - Fully Integrated, Control and Power Stage
Number of Outputs 2
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 45V
Interface Logic
Operating Supply Current 5mA
Output Configuration Half Bridge (4)
Current - Output 1.6A
Logic Function AND
Supply Current-Max (Isup) 8mA
Voltage - Load 8.2V~45V
Drain to Source Resistance 1.28Ohm
Motor Type - Stepper Bipolar
Step Resolution 1 ~ 1/32
Dimensions
Height 1mm
Length 5mm
Width 5mm
Thickness 900μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
