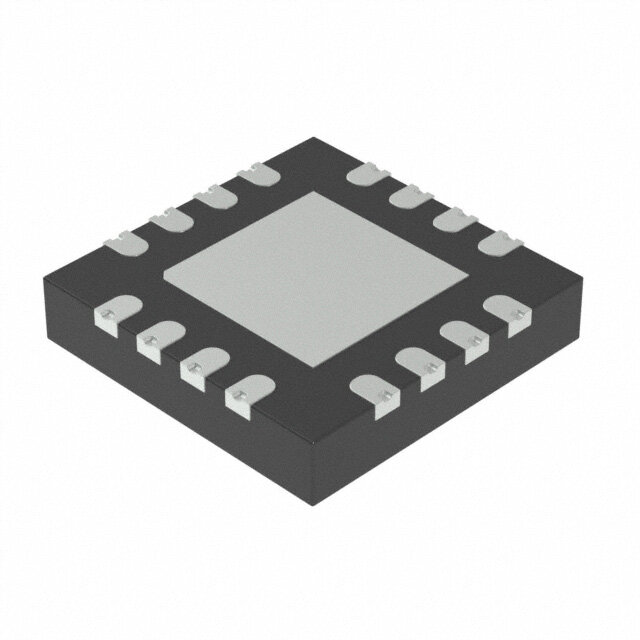

DRV8801AQRMJRQ1
RoHS
RoHS compliant
RoHS compliantPackage 16-WQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
DMOS Tape & Reel (TR) DRV8801 ALSO OPERATES WITH THE RANGE OF 6.5V TO 36V SUPPLY motor controller 5.5V 2.8A 4mm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $3.12
Unit Price: USD $3.1152
≥1 USD $3.1152
≥10 USD $2.79664
≥100 USD $2.643872
≥500 USD $2.291256
≥1000 USD $2.173741
≥3000 USD $1.950485
Inventory: 1161
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 750μm
Width 4mm
Length 4mm
Height 800μm
Technical
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Voltage - Load 6.5V~36V
Logic Function AND
Current - Output 2.8A
Output Configuration Half Bridge (2)
Analog IC - Other Type BRUSH DC MOTOR CONTROLLER
Interface Parallel
Supply Voltage-Max (Vsup) 5.5V
Number of Outputs 1
Function Driver - Fully Integrated, Control and Power Stage
Base Part Number DRV8801
Terminal Pitch 0.65mm
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 6.5V~36V
Technology DMOS
Additional Feature ALSO OPERATES WITH THE RANGE OF 6.5V TO 36V SUPPLY
Applications Automotive
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 16
Package / Case 16-WQFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
Alternative Model
