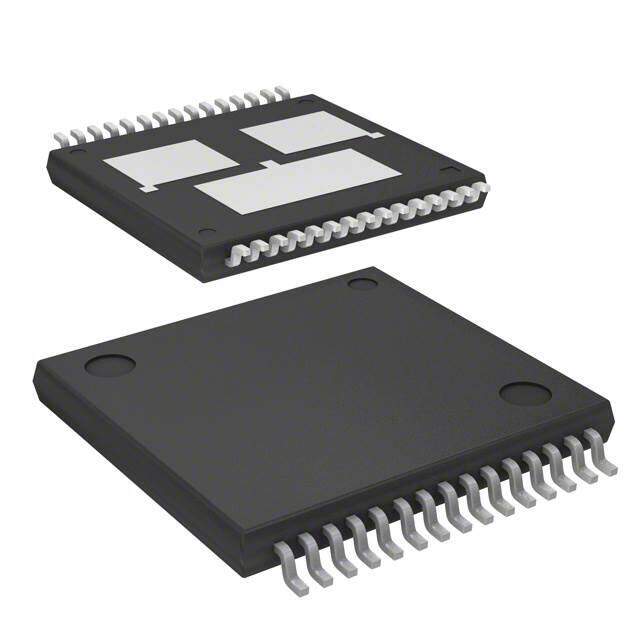

VNH3SP30TR-E
RoHS
RoHS compliant
RoHS compliantPackage 30-MPSO, MultiPowerSO
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
Power MOSFET Tape & Reel (TR) VNH3SP Automotive motor driver 40V 30A 16mm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $6.2
Unit Price: USD $6.20227
≥1 USD $6.20227
≥10 USD $5.8512
≥100 USD $5.52
≥500 USD $5.20755
Inventory: 3608
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 30-MPSO, MultiPowerSO
Number of Pins 30
Weight 4.535924g
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series STripFET?, VIPower?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 30
ECCN Code EAR99
Terminal Finish MATTE TIN
Applications Automotive
Subcategory Motion Control Electronics
Technology Power MOSFET
Voltage - Supply 5.5V~36V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 225
Supply Voltage 9V
Terminal Pitch 1mm
Base Part Number VNH3SP
Function Driver - Fully Integrated, Control and Power Stage
Max Output Current 30A
Supply Voltage-Max (Vsup) 36V
Power Supplies 9/18V
Supply Voltage-Min (Vsup) 5.5V
Number of Channels 2
Interface Parallel, PWM
Analog IC - Other Type BRUSH DC MOTOR CONTROLLER
Nominal Supply Current 15mA
Output Configuration Half Bridge (2)
Collector Emitter Voltage (VCEO) 40V
Max Collector Current 30A
Voltage - Load 5.5V~36V
Switching Frequency 10kHz
Motor Type Brushed
Motor Type - AC, DC Brushed DC
Dimensions
Height 2.35mm
Length 17.2mm
Width 16mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
