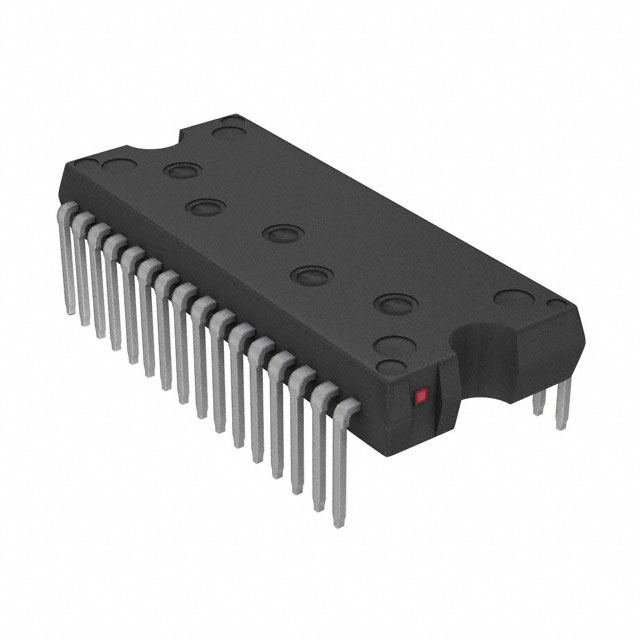

STGIPQ5C60T-HL
RoHS
RoHS compliant
RoHS compliantPackage 26-DIP Module
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
IGBT Tube STGIPQ5 Appliance motor controller 500V Max -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $10.14
Unit Price: USD $10.1376
≥1 USD $10.1376
≥10 USD $8.68824
≥100 USD $6.814034
≥500 USD $6.388166
≥1000 USD $5.749339
Inventory: 442
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Motor Type - AC, DC AC, Synchronous
Isolation Voltage 1.5kV
Voltage - Load 500V Max
Logic Function AND
Output Configuration Half Bridge (3)
Analog IC - Other Type AC MOTOR CONTROLLER
Function Driver - Fully Integrated, Control and Power Stage
Base Part Number STGIPQ5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Voltage - Supply 13.5V~18V
Technology IGBT
HTS Code 8542.39.00.01
Applications Appliance
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube
Operating Temperature -40°C~150°C TJ
Physical
Package / Case 26-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
