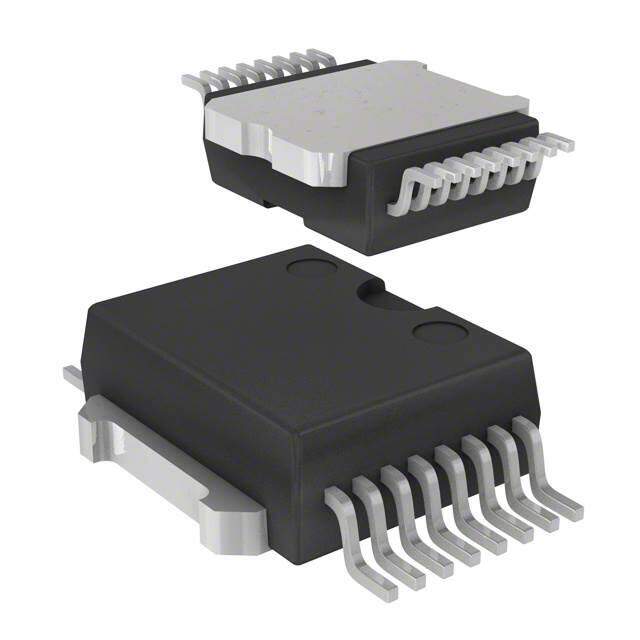

L9958SBTR
RoHS
RoHS compliant
RoHS compliantPackage 16-PowerBSOP (0.370, 9.40mm Width)
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
CMOS Tape & Reel (TR) L9958 General Purpose motor driver 300mV 8.6A 0.8mm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $5.66
Unit Price: USD $5.6584
≥1 USD $5.6584
≥10 USD $5.10752
≥100 USD $4.870272
≥500 USD $4.22884
≥1000 USD $4.038813
Inventory: 1160
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Voltage - Load 4V~28V
Supply Current-Max (Isup) 5mA
Current - Output 8.6A
Output Configuration Half Bridge (2)
Operating Supply Current 20μA
Interface SPI
Output Voltage 300mV
Number of Outputs 2
Function Driver - Fully Integrated, Control and Power Stage
JESD-30 Code R-PDSO-G18
Base Part Number L9958
Terminal Pitch 0.8mm
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 4.5V~5.5V
Technology CMOS
Subcategory Motion Control Electronics
Applications General Purpose
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 16
Package / Case 16-PowerBSOP (0.370, 9.40mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 19 Weeks
