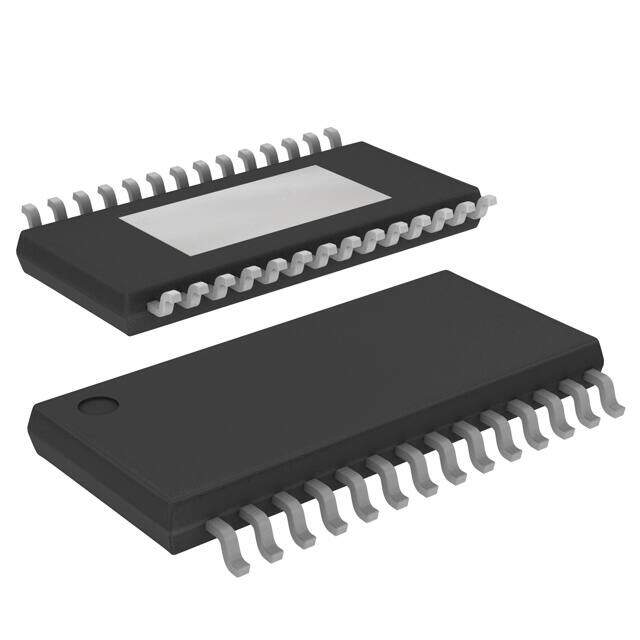

L6470HTR
RoHS
RoHS compliant
RoHS compliantPackage 28-TSSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
DMOS Tape & Reel (TR) L6470 General Purpose motor driver 45V 3A 4.4mm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $6.77
Unit Price: USD $6.7672
≥1 USD $6.7672
≥10 USD $6.11512
≥100 USD $5.830528
≥500 USD $5.06264
≥1000 USD $4.835072
≥3000 USD $4.408448
Inventory: 15803
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-TSSOP (0.173, 4.40mm Width) Exposed Pad
Number of Pins 28
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series STSPIN L64
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Subcategory Motion Control Electronics
Max Power Dissipation 5W
Technology DMOS
Voltage - Supply 3.3V 5V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 36V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number L6470
Function Driver - Fully Integrated, Control and Power Stage
Number of Outputs 1
Output Voltage 45V
Max Output Current 3A
Power Supplies 3.3/5V
Supply Voltage-Min (Vsup) 8V
Interface SPI
Nominal Supply Current 3.7mA
Output Configuration Half Bridge (4)
Supply Current-Max (Isup) 0.65mA
Voltage - Load 8V~45V
Max Junction Temperature (Tj) 150°C
Motor Type Stepper
Motor Type - Stepper Bipolar
Step Resolution 1 ~ 1/128
Dimensions
Height 1.2mm
Length 9.7mm
Width 4.4mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
