L6460
RoHS
RoHS compliant

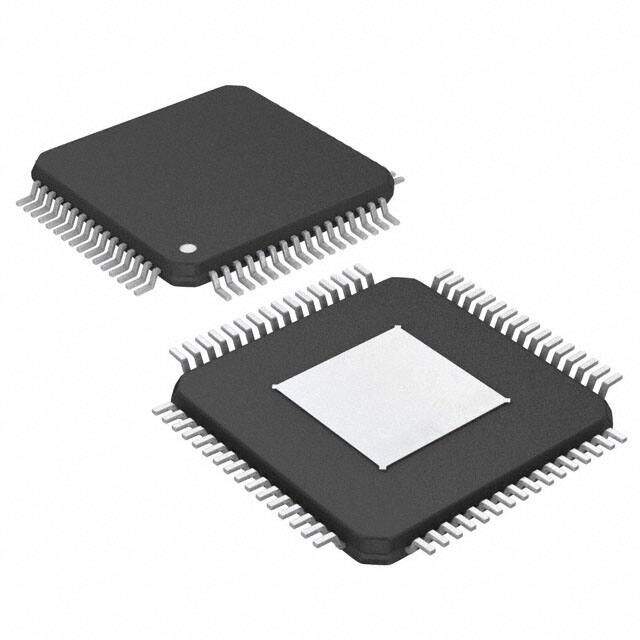

RoHS compliantPackage 64-TQFP Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
CMOS Tray L6460 General Purpose motor driver 30V 3A 10mm -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $5.42
Unit Price: USD $5.420964
≥1 USD $5.420964
≥200 USD $2.098014
≥500 USD $2.024492
≥1000 USD $1.987731
Inventory: 1483
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case 64-TQFP Exposed Pad
Surface Mount YES
Number of Pins 64
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tray
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 64
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications General Purpose
Subcategory Motion Control Electronics
Technology CMOS
Voltage - Supply 13V~38V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 32V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number L6460
Function Driver - Fully Integrated, Control and Power Stage
Output Voltage 30V
Max Output Current 3A
Supply Voltage-Max (Vsup) 38V
Power Supplies 13V
Supply Voltage-Min (Vsup) 13V
Interface SPI
Nominal Supply Current 11mA
Output Configuration Half Bridge (8)
Output Current 2.5A
Rise Time 400ns
Fall Time (Typ) 400 ns
Voltage - Load 13V~38V
Number of Drivers 4
Motor Type Stepper
Number of GPIO 15
Motor Type - AC, DC Brushed DC
Motor Type - Stepper Bipolar
Step Resolution 1 ~ 1/16
Dimensions
Height Seated (Max) 1.2mm
Length 10mm
Width 10mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
