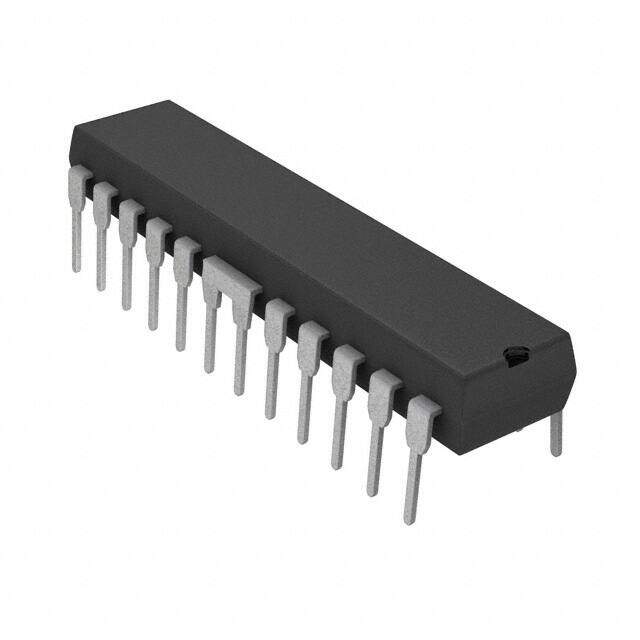

L6227N
RoHS
RoHS compliant
RoHS compliantPackage 24-PowerDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
DMOS Tube L6227 General Purpose motor controller 52V 730mOhm 1.4A 6.6mm
PDF
/
Buying Options
Total Price: USD $5.33
Unit Price: USD $5.3328
≥1 USD $5.3328
≥10 USD $4.81536
≥100 USD $4.59155
≥500 USD $3.986822
Inventory: 177
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 24-PowerDIP (0.300, 7.62mm)
Number of Pins 24
Weight 3.740011g
Technical
Operating Temperature -25°C~125°C TJ
Packaging Tube
Series STSPIN L62
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
ECCN Code EAR99
Resistance 730mOhm
Terminal Finish Matte Tin (Sn) - annealed
Applications General Purpose
Subcategory Motion Control Electronics
Technology DMOS
Voltage - Supply 8V~52V
Terminal Position DUAL
Supply Voltage 48V
Base Part Number L6227
Function Driver - Fully Integrated, Control and Power Stage
Number of Outputs 4
Output Voltage 52V
Max Output Current 2.8A
Operating Supply Voltage 48V
Supply Voltage-Min (Vsup) 8V
Interface Parallel
Analog IC - Other Type STEPPER MOTOR CONTROLLER
Operating Supply Current 1.4A
Output Configuration Half Bridge (4)
Output Current per Channel 1.4A
Collector Emitter Voltage (VCEO) 52V
Max Collector Current 1.4A
Voltage - Load 8V~52V
Motor Type Brushed
Motor Type - AC, DC Brushed DC
Motor Type - Stepper Bipolar
Dimensions
Height 3.3mm
Length 31.75mm
Width 6.6mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
