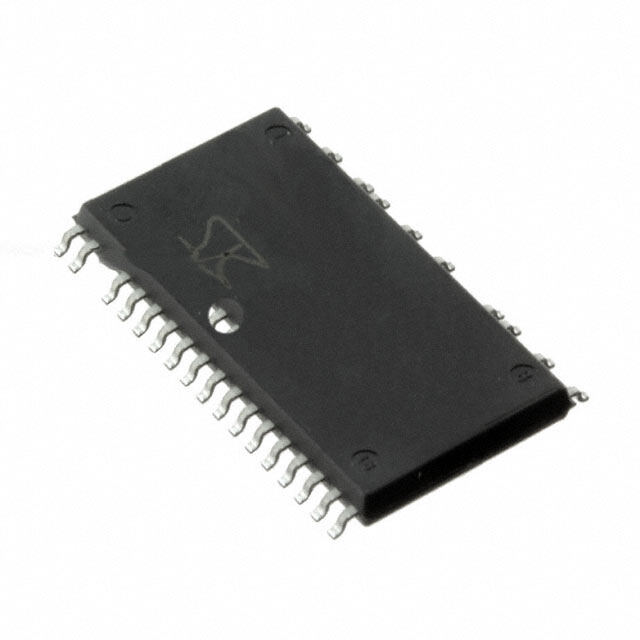

SX68002MH
RoHS
RoHS compliant
RoHS compliantPackage 36-SOP (0.449, 11.40mm Width), 24 Leads, Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
Power MOSFET Tape & Reel (TR) Appliance 2010 motor controller 15V 1.5A 11.4mm -20C~150C TJ
PDF
/
Buying Options
Total Price: USD $6.17
Unit Price: USD $6.16645
≥1 USD $6.16645
≥10 USD $5.0597
≥100 USD $4.902
≥500 USD $4.74335
≥1000 USD $4.58565
Inventory: 1113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mounting Type Surface Mount
Package / Case 36-SOP (0.449, 11.40mm Width), 24 Leads, Exposed Pad
Surface Mount YES
Technical
Operating Temperature -20°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2010
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 27
Applications Appliance
HTS Code 8542.39.00.01
Technology Power MOSFET
Voltage - Supply 13.5V~16.5V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 15V
Terminal Pitch 1.2mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDSO-G27
Function Driver - Fully Integrated, Control and Power Stage
Supply Voltage-Max (Vsup) 16.5V
Supply Voltage-Min (Vsup) 13.5V
Interface Parallel
Analog IC - Other Type BRUSHLESS DC MOTOR CONTROLLER
Output Configuration Half Bridge (3)
Current - Output 1.5A
Voltage - Load 400V Max
Motor Type - AC, DC Brushless DC (BLDC)
Dimensions
Height Seated (Max) 2.5mm
Length 22mm
Width 11.4mm
Compliance
RoHS Status RoHS Compliant
