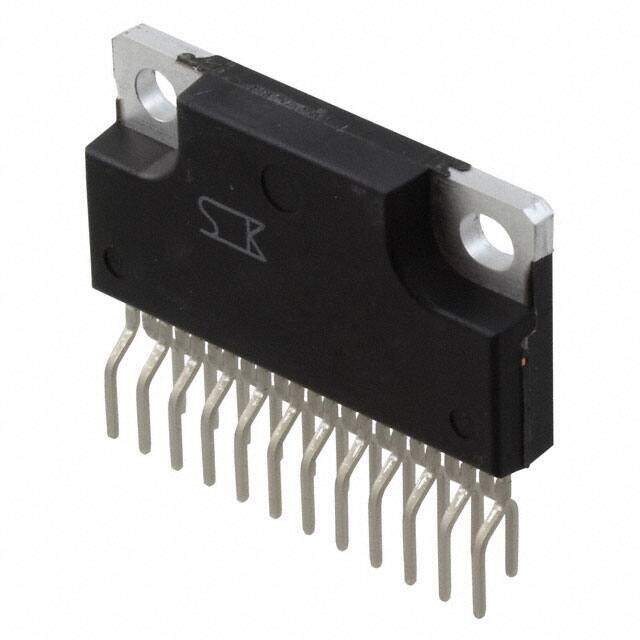

SLA7072MR
RoHS
RoHS compliant
RoHS compliantPackage 23-SSIP Exposed Tab, Formed Lead
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
RoHS Compliant ZIG-ZAG Unipolar Parallel (Motor Type - AC, DC) Motor Driver -20C~150C TJ 2A 5V
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3974
≥1 USD $9.3974
≥10 USD $7.7102
≥100 USD $7.46985
≥500 USD $7.22855
≥1000 USD $6.9882
Inventory: 1168
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Step Resolution 1, 1/2
Motor Type - Stepper Unipolar
Voltage - Load 10V~44V
Logic Function AND
Current - Output 2A
Output Configuration Low Side (4)
Analog IC - Other Type STEPPER MOTOR CONTROLLER
Interface Parallel
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 5.5V
Qualification Status Not Qualified
Function Driver - Fully Integrated, Control and Power Stage
Supply Voltage 5V
Terminal Position ZIG-ZAG
Voltage - Supply 3V~5.5V
Technology Power MOSFET
HTS Code 8542.39.00.01
Additional Feature ALSO REQUIRES A 10V TO 44V SUPPLY
Applications General Purpose
ECCN Code EAR99
Number of Terminations 23
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Published 2006
Packaging Tube
Operating Temperature -20°C~150°C TJ
Physical
Number of Pins 23
Package / Case 23-SSIP Exposed Tab, Formed Lead
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
