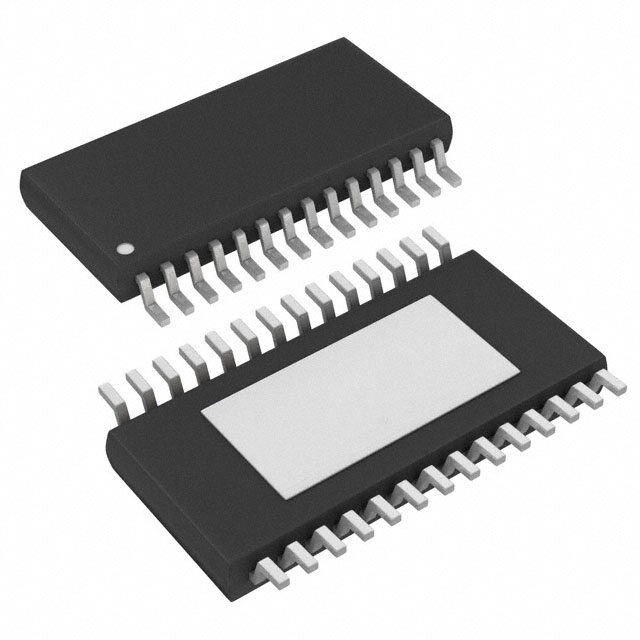

BD6425EFV-E2
RoHS
RoHS compliant
RoHS compliantPackage 28-VSSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
DMOS Tape & Reel (TR) BD642* General Purpose motor controller 37V 1.2A 4.4mm -25C~150C TJ
PDF
/
Buying Options
Total Price: USD $8.93
Unit Price: USD $8.932
≥1 USD $8.932
≥10 USD $8.07136
≥100 USD $7.696128
≥500 USD $6.682632
≥1000 USD $6.382288
≥3000 USD $5.819158
Inventory: 1366
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-VSSOP (0.173, 4.40mm Width) Exposed Pad
Number of Pins 28
Technical
Operating Temperature -25°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
Termination SMD/SMT
ECCN Code EAR99
Applications General Purpose
Subcategory Motion Control Electronics
Technology DMOS
Voltage - Supply 19V~42V
Terminal Position DUAL
Terminal Form GULL WING
Supply Voltage 37V
Terminal Pitch 0.65mm
Base Part Number BD642*
Function Driver - Fully Integrated, Control and Power Stage
Number of Outputs 4
Power Supplies 37V
Supply Voltage-Min (Vsup) 19V
Interface Analog, PWM
Nominal Supply Current 2mA
Output Configuration Half Bridge (4)
Current - Output 1.2A
Logic Function AND
Supply Current-Max (Isup) 5mA
Voltage - Load 19V~42V
Motor Type Stepper
Motor Type - Stepper Bipolar
Step Resolution 1, 1/2, 1/4
Dimensions
Height 850μm
Length 9.7mm
Width 4.4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
