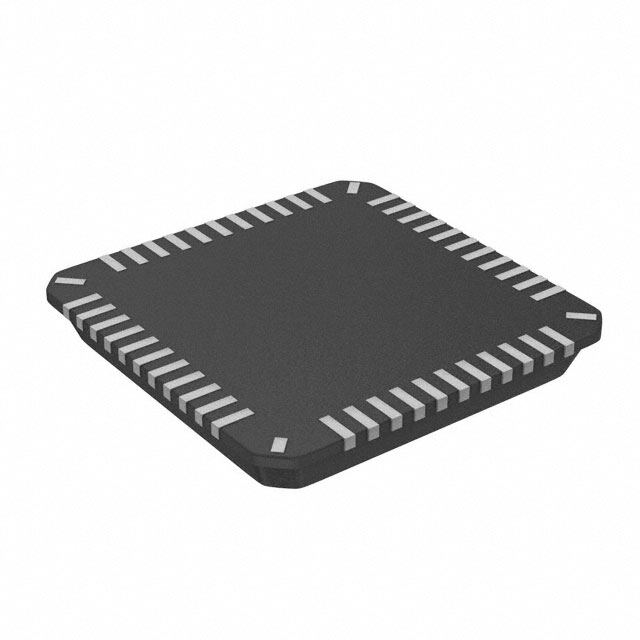

AN41908A-VB
RoHS
RoHS compliant
RoHS compliantPackage 44-VFQFN
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
Power MOSFET Tape & Reel (TR) AN41908A Camera motor controller 3.5V 2.5Ohm 250mA 150mA 6mm
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.21255
≥1 USD $2.21255
≥10 USD $1.81545
≥100 USD $1.75845
≥500 USD $1.70145
≥1000 USD $1.6454
Inventory: 16922
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 6mm
Length 6mm
Height 900μm
Technical
Step Resolution 1 ~ 1/256
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Motor Type Stepper
Voltage - Load 2.7V~5.5V
Collector Emitter Voltage (VCEO) 3.5V
Current - Output 250mA 150mA
Output Configuration Half Bridge (10)
Nominal Supply Current 10mA
Interface Serial
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
Max Output Current 250mA
Number of Outputs 5
Function Driver - Fully Integrated, Control and Power Stage
Base Part Number AN41908A
Terminal Pitch 0.4mm
Supply Voltage 3.1V
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 2.7V~5.5V
Technology Power MOSFET
Max Power Dissipation 141.4mW
Applications Camera
Resistance 2.5Ohm
Number of Terminations 44
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -20°C~125°C TJ
Physical
Number of Pins 44
Surface Mount YES
Package / Case 44-VFQFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 17 Weeks
